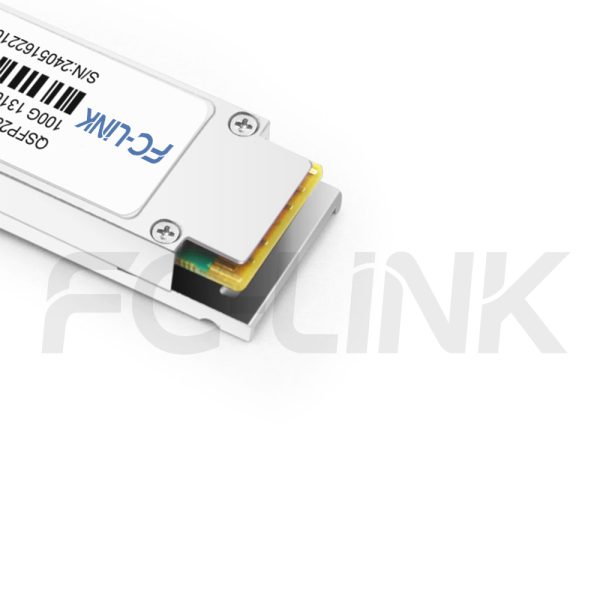

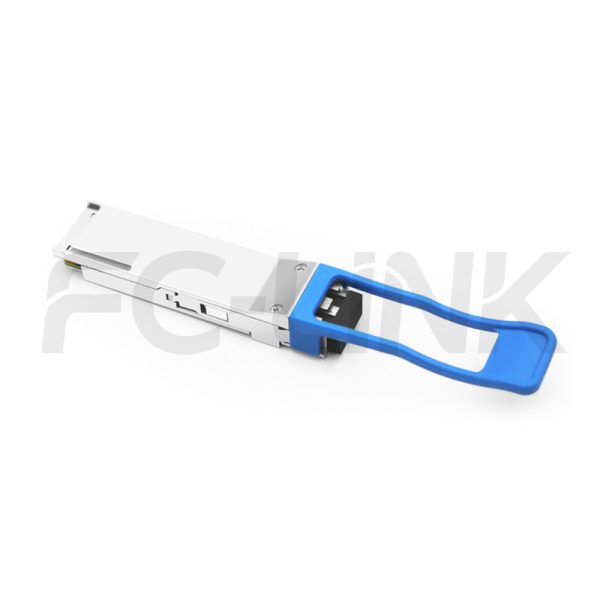

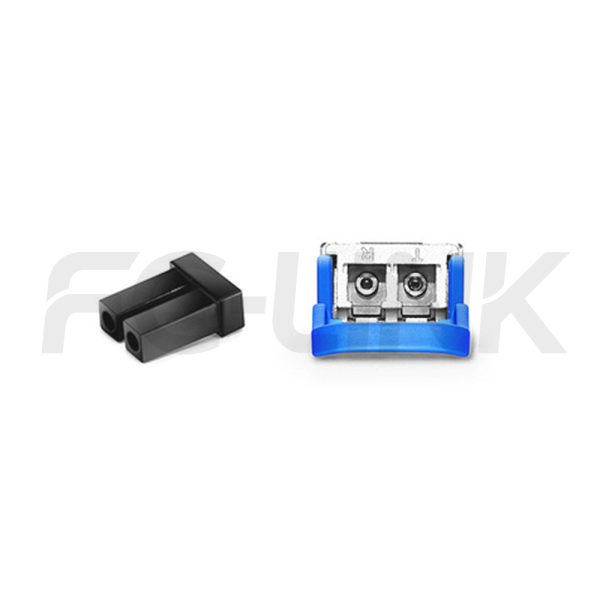

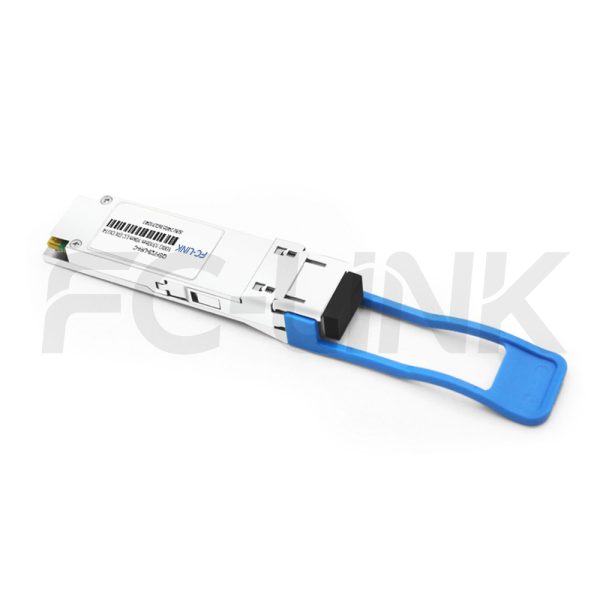

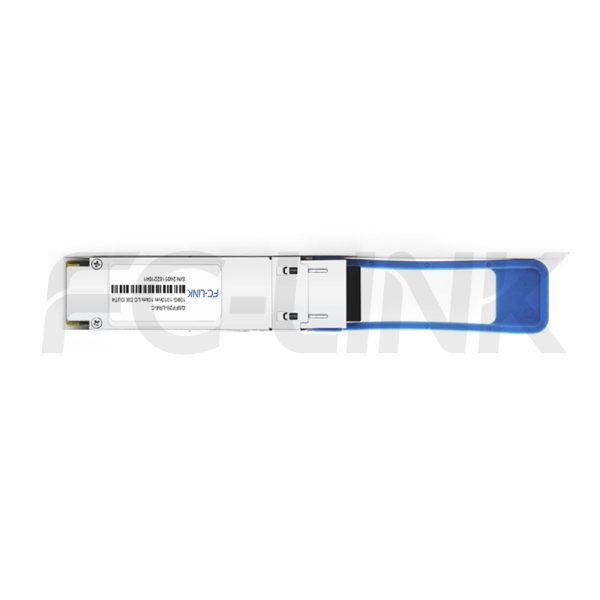

Generic Compatible 100GBASE-LR4 QSFP28 10km Breakout DOM Duplex LC SMF Optical Transceiver Module

QSFP28-103-LW-10(LR4)-LCD-OUT4

Category: Tags: , , , , , , Brand:
  • Broad Multi-Brand Compatibility
  • Flexible Customization Support
  • Tested for Reliable Performance
  • Fast Response & Delivery
  • Professional Technical Support

The FC-LINK QSFP28 100G LAN-WDM 10km LR4 LC DX OUT4 is a 100Gb/s transceiver module designed for optical communication applications, compliant with OTU4 411-9D1F requirements as specified in ITU-T Recommendations G.959.1, G.709, and Supplement 39 (G.sup39). The module converts four 28Gb/s electrical input channels into four LAN WDM optical signals, multiplexing them into a single channel for 100Gb/s optical transmission. On the receiver side, it de-multiplexes the 100Gb/s optical input back into four LAN WDM optical signals and converts them into four electrical output channels.The central wavelengths of the four LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm, in accordance with the LAN WDM wavelength grid defined in IEEE 802.3ba. Equipped with high-performance cooled LAN WDM DFB transmitters and high-sensitivity PIN receivers, the module ensures exceptional performance.Designed according to the QSFP+ Multi-Source Agreement (MSA), this transceiver features a compact form factor, robust optical and electrical connections, and a digital diagnostic interface. It is engineered to operate reliably under harsh conditions, including extreme temperatures, high humidity, and EMI interference, making it ideal for demanding environments.

SPECIFICATIONS
Product ModelQSFP28-103-LW-10(LR4)-LCD-OUT4Manufacturer brandFC-LINK
Package TypeQSFP28Optical connectorLC DX
Max Data Rate112GbpsChannel Data Rate27.9525Gbps
Effective transmission distance10km
Wavelength1310nmOperating voltage3.3V
Fiber TypeSMFCore Size9/125
Transmitter TypeDFBReceiver TypePIN
TX Power-0.6~4dBmReceiver Sensitivity-8.4dBm
Digital Optical Monitoring(DOM)YESReceiver Overload4dBm
Power Consumption<4WProtocolsOTU4 411-9D1F
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Data center optical transceiver application scenario
Server-to-Switch Data Center Links

Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.

Enterprise network fiber optic application scenario
Building-to-Building Campus Backbone

Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.

Telecom fiber optic link application scenario
Access-to-Core Enterprise Uplinks

Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.

Industrial fiber optic network application scenario
Industrial Switching in Harsh Environments

Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.

Network topology background
1
1
1

Compatible Brands

Cisco compatible optical transceiver logo Huawei compatible optical transceiver logo H3C compatible optical transceiver logo Juniper compatible optical transceiver logo Arista compatible optical transceiver logo Dell compatible optical transceiver logo Intel compatible optical transceiver logo Mellanox compatible optical transceiver logo HP compatible optical transceiver logo TP-Link compatible optical transceiver logo

Customization Options

Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
Absolute Maximum Ratings
ParameterSymbolMin.Max.Unit
Power supply voltageVCC-0.53.6V
Storage temperatureTC-4085℃
Relative humidityRH585%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Recommended Operating Environment
ParameterSymbolMinTypicalMaxUnit
Power supply voltageVCC3.153.33.45V
Operating case temperatureTca0-70℃
Electrical Characteristics
ParameterSymbolMinTypicalMaxUnitRef
Transmitter
Input differential impedanceRin-100-Ω1
Single-ended input voltage
tolerance		--0.3-4V-
AC common mode input voltage
tolerance		-15--mV-
Differential input voltage-50--mV-
Differential input voltage swing,
per lane		Vin190-1000mV-
Receiver
Output differential impedanceRout-100-Ω1
Differential output swing,per laneVout300-900mV2
AC common mode output voltage tolerance---7.5mV-
Single-ended output voltage--0.3-4V-
Notes:
[1]AC coupled.
[2]Into 100 ohm differentialter mination.
Transmitter Specifications-Optical
ParameterSymbolMinTypicalMaxUnitRef.
Bit rate per laneDR27.9525±20ppmGb/s1
Data rate variation--20-20ppm-
Lane_0 center wavelengthλ01294.531295.561296.59nm-
Lane_1 center wavelengthλ11299.021300.051301.09nm-
Lane_2 center wavelengthλ21303.541304.581305.63nm-
Lane_3 center wavelengthλ31308.091309.141310.19nm-
Total average output powerPo--10.5dBm-
Average launch power each lane--0.6-4dBm2,6
Difference in launch power between any two lanes(OMA)---5dB-
Extinction ratioER4--dB-
Side-mode suppression ratioSMSR30--dB-
Average launch power of OFF transmitterper lanePoff---30dBm-
Transmitter reflectance----12dB-
Optical return loss toleranceORL--20dB-
Transmitter eye mask definition
{X1,X2,X3,Y1,Y2,Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}3
Receiver Specifications-Optical
ParameterSymbolMin.TypicalMax.UnitRef.
Bit rate per channelDR27.9525±20ppmGb/s4
Data rate variation--20-20ppm-
Lane_0 center wavelengthλ01294.531295.561296.59nm-
Lane_1 center wavelengthλ11299.021300.051301.09nm-
Lane_2 center wavelength入21303.541304.581305.63nm-
Lane_3 center wavelengthλ31308.091309.141310.19nm-
Average receive power per laneRXPOW-6.9-4dBm5,6
Receive sensitivity in OMA per laneRsen---8.4dBm-
Optical return lossORL---26dB-
LOS assertLsa-25--dBm-
LOS DE-assertLda---12dBm-
LOS hysteresisLh0.5--dB-
Notes:
[1]Transmitter consists of 4lasers operating at 27.95Gb/s each.
[2]Minimum value is informative.
[3]Hit ratio 5x10-5.
[4]Receiver consists of4 photodetectors operatingat 27.95Gb/s each.
[5]Minimum value is informative,equals min TxOMA with infinite ER and max channel insertion loss.
[6]Power value and power accuracy are with allchannels on.
General Specifications
ParameterSymbolMin.TypicalMax.UnitRef.
Bit rate(all wavelengths combined)BR--112Gb/s1
Bit error ratio @25.78Gb/sBER--10-6-2
Maximum supported distances
Fiber type------
SMF per G.652Lmax--10km-
Notes:
[1]Supports OTU4411-9D1F per ITU-T G.959.1.
[2]Tested with a 231-1PRBS.

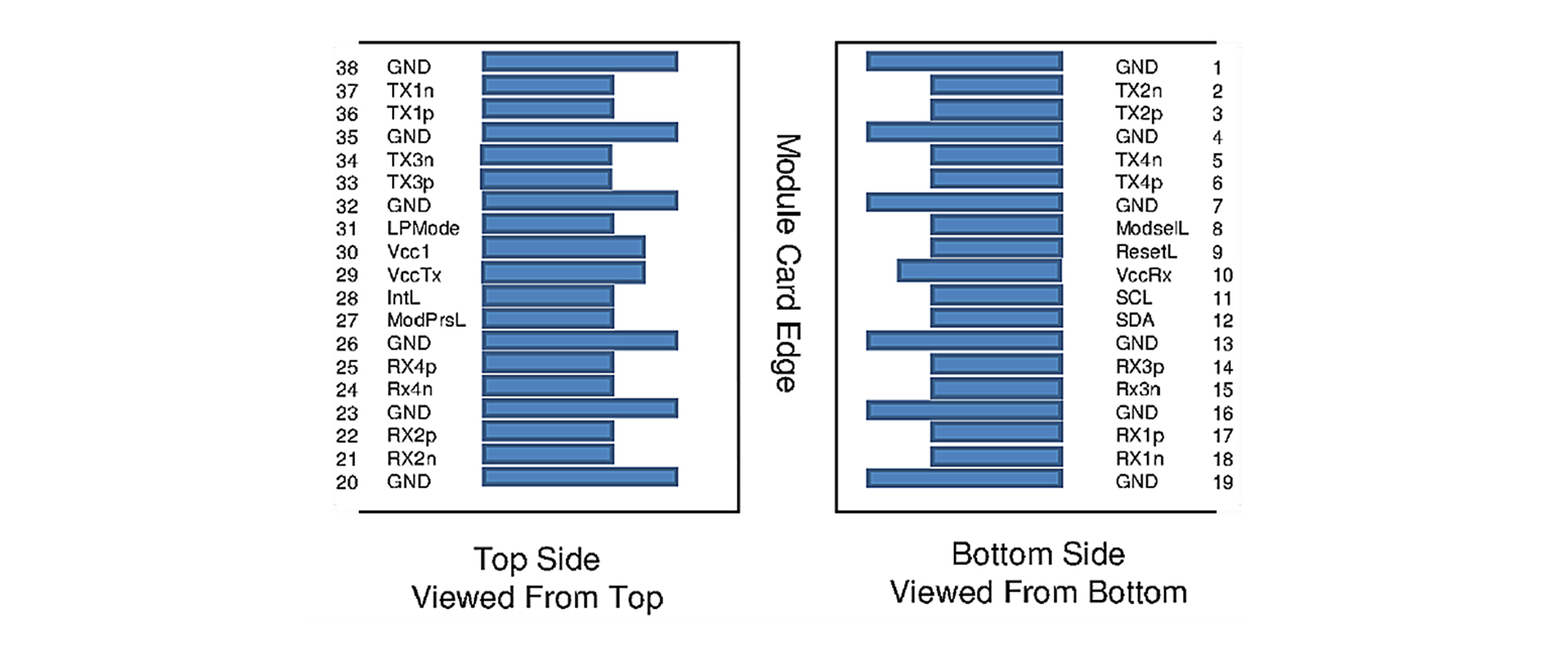

QSFP28 Transceiver Electrical Pad Layout

Generic Compatible 100GBASE-LR4 QSFP28 10km Breakout DOM Duplex LC SMF Optical Transceiver Module
Pin Definition
PinSymbolName/Description
1GNDGround
2Tx2nTransmitter inverted data input
3Tx2pTransmitter non-inverted data input
4GNDGround
5Tx4nTransmitter inverted data input
6Tx4pTransmitter non-inverted data input
7GNDGround
8ModSelLModule select
9ResetLModule reset
10VCCRx+3.3V power supply receiver
11SCL2-wire serial interface clock
12SDA2-wire serial interface data
13GNDGround
14Rx3pReceiver non-inverted data output
15Rx3nReceiver inverted data output
16GNDGround
17RxlpReceiver non-inverted data output
18Rx1nReceiver inverted data output
19GNDGround
20GNDGround
21Rx2nReceiver inverted data output
22Rx2pReceiver non-inverted data output
23GNDGround
24Rx4nReceiver inverted data output
25Rx4pReceiver non-inverted data output
26GNDGround
27ModPrsLModule present
28IntLInterrupt
29VCCTx+3.3V power supply transmitter
30VCC1+3.3V power supply
31LPModeLow power mode
32GNDGround
33Tx3pTransmitter non-inverted data input
34Tx3nTransmitter inverted data input
35GNDGround
36TxlpTransmitter non-inverted data input
37Tx1nTransmitter inverted data input
38GNDGround
Optical transceiver TX RX performance test
Performance Testing

Each module is tested before shipment to help ensure stable optical and electrical performance.

Optical transceiver compatibility test
Compatibility Verification

Compatibility validation is available for major switch and router platforms.

Optical transceiver aging and reliability test
Reliability Screening

Selected products support aging, temperature cycle, and stability testing for demanding applications.

Automatic labeling and traceability for optical transceivers
Traceable Quality Control

Inspection and production records support more consistent quality control and batch traceability.
