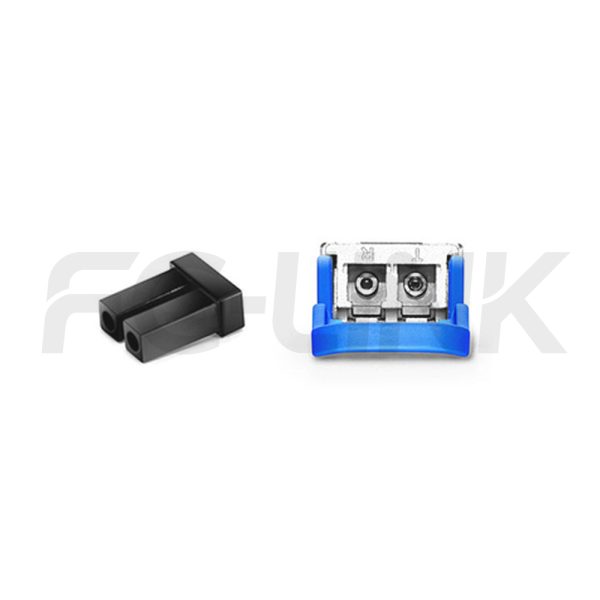

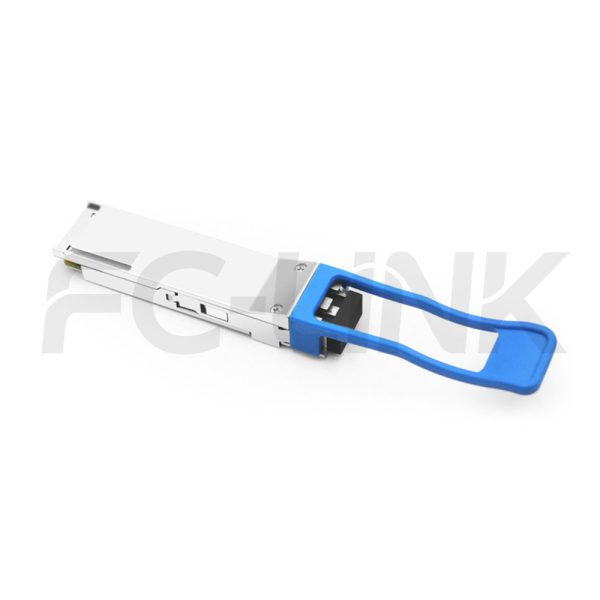

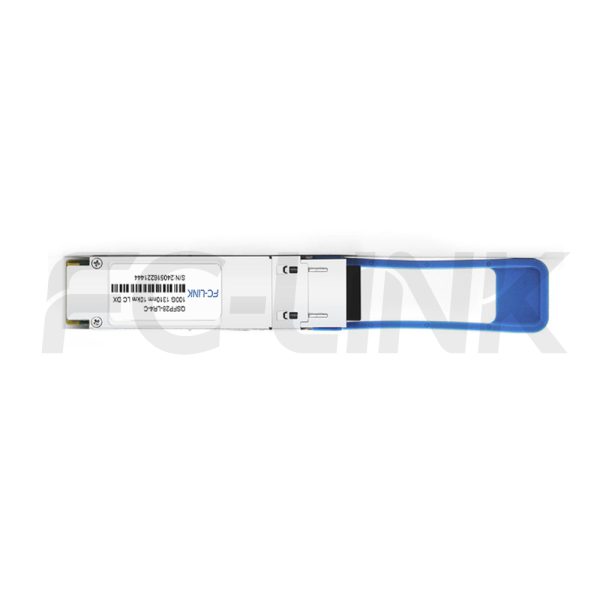

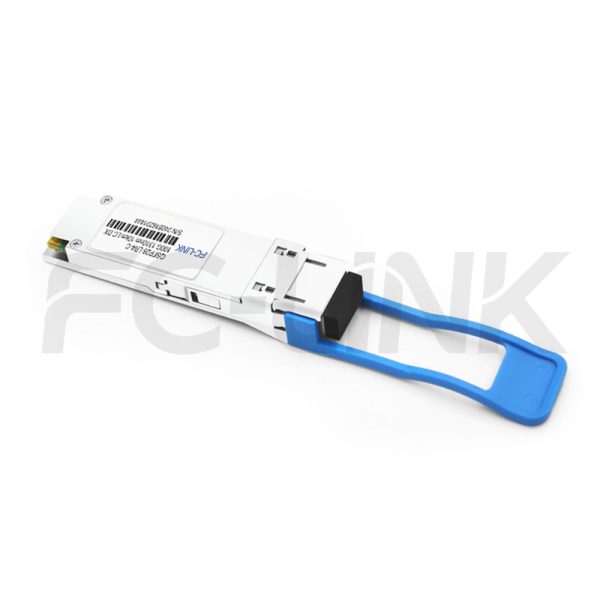

The FC-LINK QSFP28 100G LAN-WDM 10km LR4 LC DX Transceiver is a high-performance optical module designed for 100GBASE-LR4 applications, compliant with the IEEE P802.3ba standard. This module converts four channels of 25Gb/s electrical data into four LAN-WDM optical signals, multiplexing them into a single channel for 100Gb/s optical transmission. On the receiver side, it de-multiplexes a 100Gb/s optical input into four LAN-WDM channels and converts them back into four electrical output channels.The central wavelengths of the four LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm, aligned with the LAN-WDM wavelength grid defined in IEEE 802.3ba. Equipped with high-performance cooled LAN-WDM DFB transmitters and high-sensitivity PIN receivers, the transceiver ensures reliable performance for 100Gigabit Ethernet applications over links up to 10km, meeting the IEEE 802.3ba Clause 88 100GBASE-LR4 optical interface requirements.Designed according to the QSFP+ Multi-Source Agreement (MSA), this transceiver features a compact form factor, optical/electrical connections, and a digital diagnostic interface. It is built to withstand harsh external operating conditions, including extreme temperatures, high humidity, and EMI interference, ensuring robust and reliable performance in demanding environments.

SPECIFICATIONS
Product ModelQSFP28-103-LW-10(LR4)-LCDManufacturer brandFC-LINK
Package TypeQSFP28Optical connectorLC DX
Max Data Rate100GbpsChannel Data Rate25.78125Gbps
Effective transmission distance10km
Wavelength1310nmOperating voltage3.3V
Fiber TypeSMFCore Size9/125
Transmitter TypeDFBReceiver TypeDIN
TX Power-4.3~4.5dBmReceiver Sensitivity-8.6dBm
Digital Optical Monitoring(DOM)YESReceiver Overload4.5dBm
Power Consumption<4WProtocols100GBASE-LR4 100G Ethernet
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Data center optical transceiver application scenario
Server-to-Switch Data Center Links

Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.

Enterprise network fiber optic application scenario
Building-to-Building Campus Backbone

Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.

Telecom fiber optic link application scenario
Access-to-Core Enterprise Uplinks

Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.

Industrial fiber optic network application scenario
Industrial Switching in Harsh Environments

Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.

Network topology background
1
1
1

Compatible Brands

Cisco compatible optical transceiver logo Huawei compatible optical transceiver logo H3C compatible optical transceiver logo Juniper compatible optical transceiver logo Arista compatible optical transceiver logo Dell compatible optical transceiver logo Intel compatible optical transceiver logo Mellanox compatible optical transceiver logo HP compatible optical transceiver logo TP-Link compatible optical transceiver logo

Customization Options

Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
Absolute Maximum Ratings
ParameterSymbolMin.Max.Unit
Power supply voltageVCC-0.53.6V
Storage temperatureTC-4085℃
Relative humidityRH585%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Recommended Operating Environment
ParameterSymbolMinTypicalMaxUnit
Power supply voltageVCC3.153.33.45V
Operating case temperatureTca0-70℃
Electrical Characteristics
ParameterSymbolMinTypicalMaxUnitRef
Transmitter Section:
Input differential impedanceRin-100-Ω1
Single-ended input voltage
tolerance		--0.3-4V-
AC common mode input voltage
tolerance		-15--mV-
Differential input voltage-50--mV-
Differential input voltage swing,
perlane		Vin190-1000mV-
Receiver
Output differential impedanceRout-100-Ω1
Differential output swing,perlaneVout300-900mV2
AC common mode output voltage
tolerance		---7.5mV-
Single-ended output voltage--0.3-4V-
Notes:
[1]AC coupled.
[2]Into 100 ohm differentialter mination.
Transmitter Specifications-Optical
ParameterSymbolMinTypicalMaxUnitRef.
Bit rate per laneDR25.78125±100ppmGb/s1
Data rate variation--100-100ppm-
Lane_0 center wavelengthλ01294.531295.561296.59nm-
Lane_1 center wavelengthλ11299.021300.051301.09nm-
Lane_2 center wavelengthλ21303.541304.581305.63nm-
Lane_3 center wavelengthλ31308.091309.141310.19nm-
Total average output powerPo--10.5dBm-
Average launch power each lane--4.3-4.5dBm2,7
Optical modulation amplitude (OMA)each laneOMA-1.3-4.5dBm-
Difference in launch power between any two lanes(OMA)---5dB-
Launch power in OMA minus TDP, each laneOMA-TDP-2.3--dBm-
Transmitter and dispersion penalty(TDP),each laneTDP--2.2dB-
Extinction ratioER4--dB-
Side-mode suppression ratioSMSR30--dB-
Average launch power of OFF transmitter per lanePoff---30dBm-
Transmitter reflectance----12dB-
Optical return loss toleranceORL--20dB-
Transmitter eye mask definition{X1,X2,X3,Y1,Y2,Y3}{0.25,0.4,0.45,0.25,0.28,0.4}3
Receiver Specifications-Optical
ParameterSymbolMin.TypicalMax.UnitRef.
Bit rate per channelDR25.78125±100ppmGb/s4
Data rRate variation--100-100ppm-
Lane_0 center wavelengthλ01294.531295.561296.59nm-
Lane_1 center wavelengthλ11299.021300.051301.09nm-
Lane_2 center wavelength入21303.541304.581305.63nm-
Lane_3 center wavelengthλ31308.091309.141310.19nm-
Average receive power per laneRXPOW-10.6-4.5dBm5,7
Receive power(OMA)per lane---4.5dBm-
Receive sensitivity in OMA per laneRsen---8.6dBm-
Stressed receiver sensitivity(OMA) per laneRXSRS---6.8dBm6
Optical return lossORL---26dB-
LOS assertLsa-25--dBm-
LOS DE-assertLda---12dBm-
LOS hysteresisLh0.5--dB-
Notes:
[1]Transmitter consists of 4lasers operating at 25.78Gb/s each.
[2]Minimum value is informative.
[3]Hit ratio 5x10-5.
[4]Receiver consists of4 photodetectors operatingat 25.78Gb/s each.
[5]Minimum valueis informative,equals min TxOMA with infinite ERand max channel insertion loss.
[6]SRS ismeasured with verticaleye closure penalty of 1.8 dB max,J2of 0.30 UI,and J9 of 0.47 UI.
[7]Power valueand power accuracy are with all channels on.
General Specifications
ParameterSymbolMin.TypicalMax.UnitRef.
Bit rate(all wavelengths combined)BR--103.1Gb/s1
Bit error ratio @25.78Gb/sBER--10-12-2
Maximum supported distances
Fiber type------
SMF per G.652Lmax--10km-
Notes:
[1]Supports 100GBASE-LR4 per IEEE 802.3ba.
[2]Tested with a 231-1 PRBS.

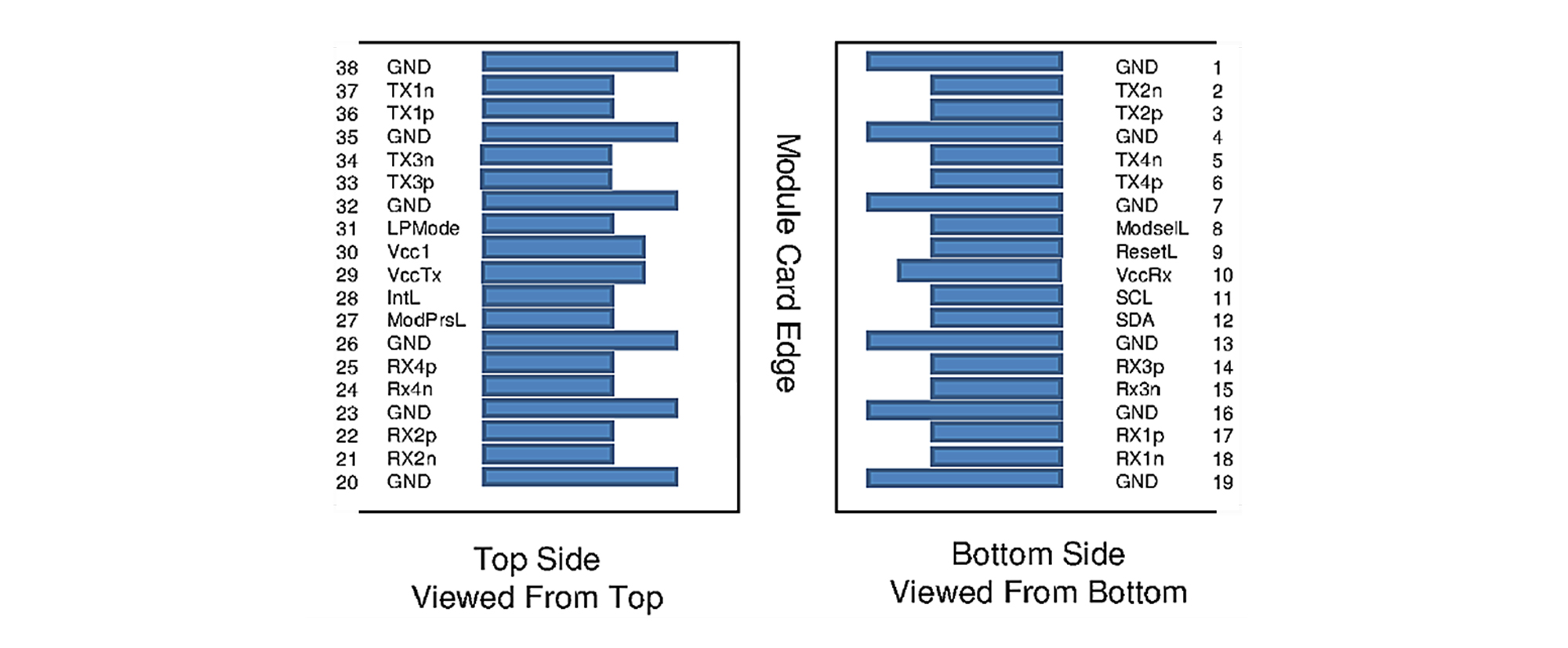

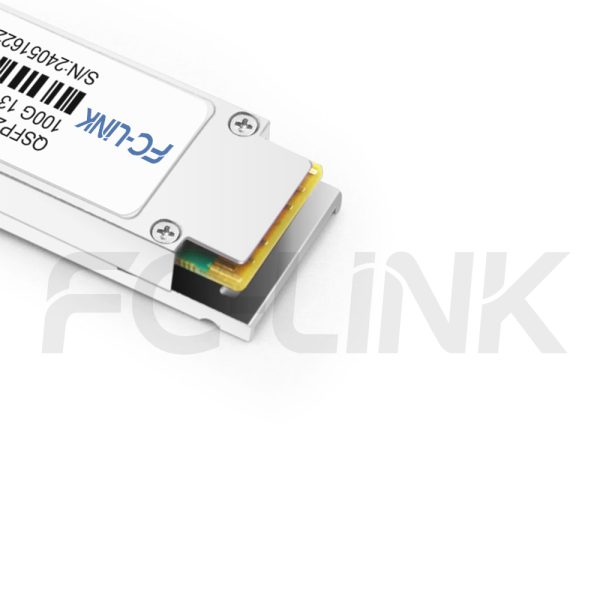

QSFP28 Transceiver Electrical Pad Layout

Generic Compatible 100GBASE-LR4 QSFP28 10km DOM Duplex LC SMF Optical Transceiver Module
Pin Definition
PinSymbolName/Description
1GNDGround
2Tx2nTransmitter inverted data input
3Tx2pTransmitter non-inverted data input
4GNDGround
5Tx4nTransmitter inverted data input
6Tx4pTransmitter non-inverted data input
7GNDGround
8ModSelLModule select
9ResetLModule reset
10VCCRx+3.3V power supply receiver
11SCL2-wire serial interface clock
12SDA2-wire serial interface data
13GNDGround
14Rx3pReceiver non-inverted data output
15Rx3nReceiver inverted data output
16GNDGround
17RxlpReceiver non-inverted data output
18Rx1nReceiver inverted data output
19GNDGround
20GNDGround
21Rx2nReceiver inverted data output
22Rx2pReceiver non-inverted data output
23GNDGround
24Rx4nReceiver inverted data output
25Rx4pReceiver non-inverted data output
26GNDGround
27ModPrsLModule present
28IntLInterrupt
29VCCTx+3.3V power supply transmitter
30VCC1+3.3V power supply
31LPModeLow power mode
32GNDGround
33Tx3pTransmitter non-inverted data input
34Tx3nTransmitter inverted data input
35GNDGround
36TxlpTransmitter non-inverted data input
37Tx1nTransmitter inverted data input
38GNDGround
