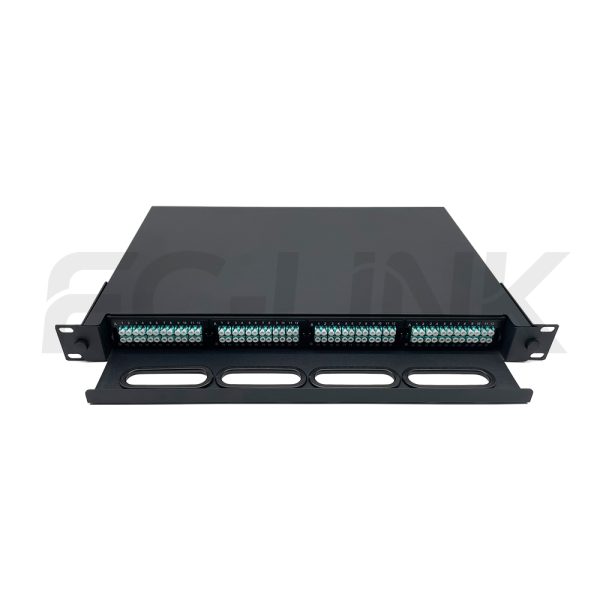

MPO 1U Rack Mount Fiber Enclosure with 4 Plastic Cassettes(4pcs of 24 Fibers MPO to LC Fiber Patch Cord), 96 Fibers, Sliding Type
48 applications based on dual-fiber bidirectional transmission
96 applications based on single-fiber bidirectional transmission
Use 4 MPO-24 for connection
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | LC |
| Fiber Type | SM OS2/OM3/OM4/OM5 | Fiber Number | 96 Fibers |
| MPO IL | Standard loss/Low loss | Polishing | MPO:PC or APC LC:UPC or APC |
| Chassis Type | Sliding | Overall Dimensions | 1U |
| Connector Type | Female/Male | RL | ≥60dB(SM) ≥20dB(MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. Value) | 0.35/0.6dB |
| Breakout Outside Diameter (OD) | 0.9mm | MPO Cassettes | 4 Plastic Cassettes |
| Breakout Length | 0.3m | Patch Cord Type | 4pcs of MPO-24LC |
| Cable Material | LSZH | Fiber Loss | SM:0.35db@1310nm/0.2dB@1550nm MM:2.4dB@850nm/0.6dB@1300nm |
| Fiber Brand | Corning/YOFC | Number Of Installation | Each Cassettes contains 1 Patch cord |
| Working Wavelength | 1310/1550(SM) 850/1300(MM) | Durability | ≥500 times |
| Depth | 363.2mm | Polarity | TYPE A/AF/U/UF |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
Product Presentation
This high-capacity 1U Sliding MPO Enclosure maximizes your fiber density, achieving a massive 96-fiber capacity in minimal rack space. Pre-loaded with four high-count MPO-24 to LC cassettes, this unit is engineered for large-scale aggregation, providing up to 48 dual-fiber channels or an impressive 96 single-fiber bidirectional channels using four MPO-24 connections. It offers superior consolidation of services, simplifying the transition from high-count MPO trunking to individual LC ports, all while the sliding mechanism allows for effortless system access and guaranteed long-term stability.
MPO Enclosure Series Products
Customization Options
Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
Application
QSFP, CFP optical tranceiver
High density data center
FTTX
Features

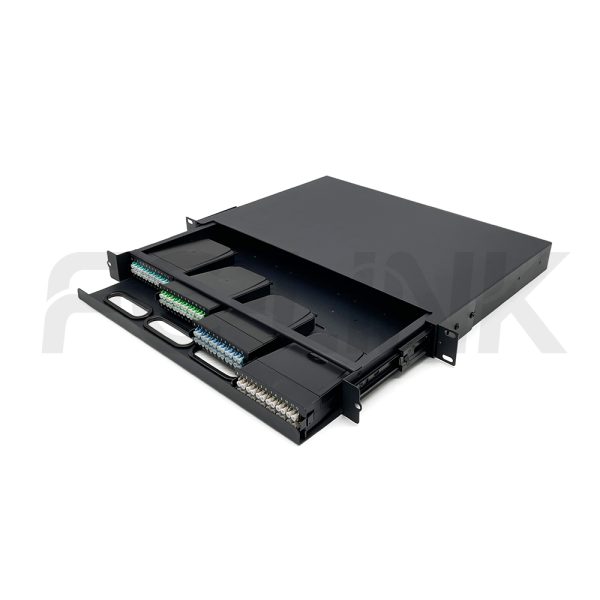

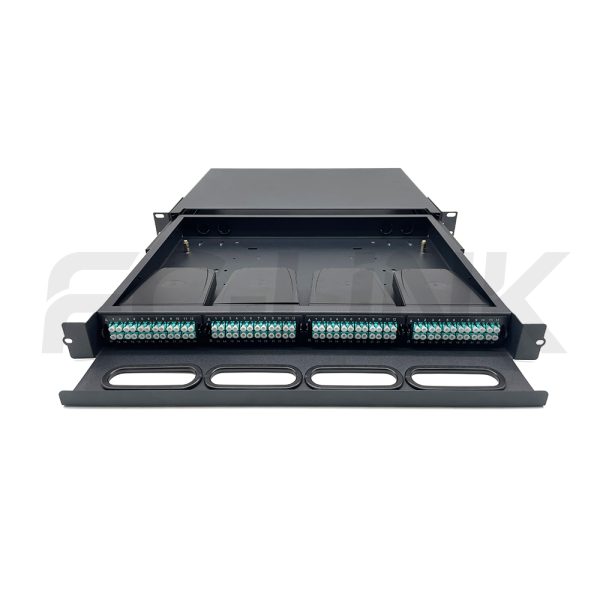

Sliding design
The Enclosure adopts high-quality guide rail, and the tray can be completely extracted from the chassis, which is convenient for jumper docking and optical cable storage operation.
Modular design
Flexible configuration by using removable modular design, optional adapter panel or MPO cassette module to realize different configuration requirements of ports and meet various wiring schemes.
Optical cable introduction

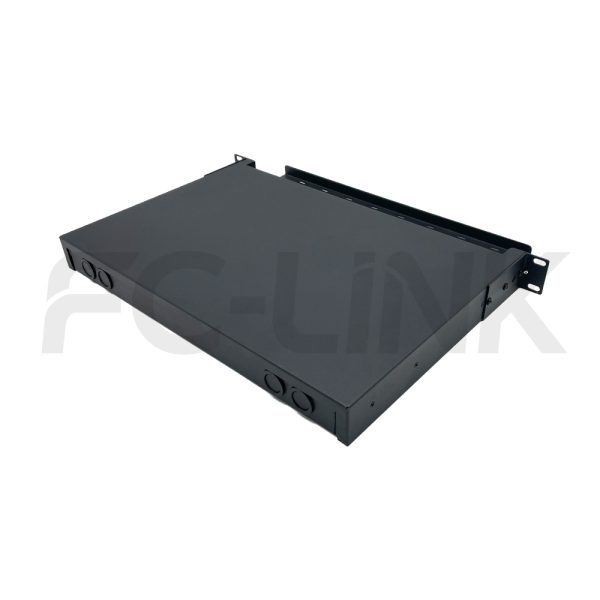

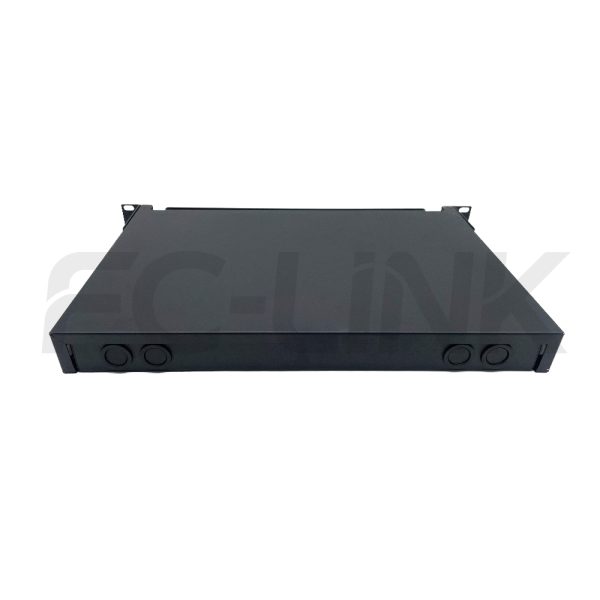

The rear of the chassis is equipped with a plurality of cable inlet, and the chassis is equipped with a plurality of optical cable winding and fixing points.
High quality
Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.
Accessories
Cable ties(3*150mm)*6pcs
Screw and nut*4sets
Velcro tape(10*335mm)*1pc
Waterproof cable gland 2pcs
Size Information

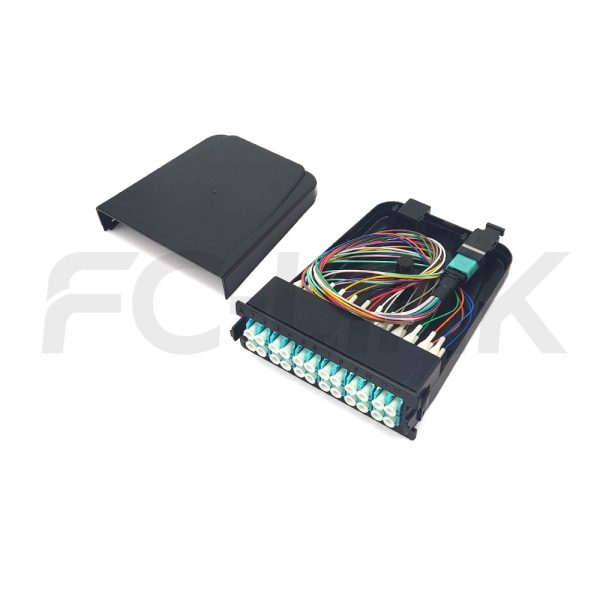

MPO Modular Cassettes Information
| Adapter Panel Order Information | ||
|---|---|---|
| 6 Ports Cassette(6 Plugs) |  | Each Port Can Use LC Duplex Flangeless Adapter |
| Each Port Can Use SC Simplex Flangeless Adapter |
||
| 12 Ports Cassette |  | Each Port Can Use LC Duplex Flangeless Adapter |
| Each Port Can Use SC Simplex Flangeless Adapter |
||
| Standard Adapter Panel |  | Each Port Can Use LC Duplex Flangeless Adapter |
| Each Port Can Use SC Simplex Flangeless Adapter |
||
| 6 Port Adapter Panel |  | Each Port Can Use Standard MPO Long-Flange Adapter |
| 12 Port Adapter Panel |  | Each Port Can Use SC Frootprint MPO Flangeless Adapter |
| Blank Plate |  | - |
Packaging
Production & Testing Equipment
Quality Advantage
Configuration Information
