SPECIFICATIONS
Connector A2*MPOConnector B3*MPO
Fiber TypeG657A1Fiber Number24 Fibers
MPO ILStandard loss/Low lossPolishingAPC
Branching Type2*3Connector Boot TypeRound fiber
Connector TypeFemale/MaleRL≥60dB (SM)
IL(Typical)0.1/0.2dBIL(Max. Value)0.35/0.6dB
Breakout Outside Diameter (OD)2.0/3.0mmCable ColorYellow
Breakout Length0.3-1.5mFlame Retardant GradeOFN/OFNR/OFNP
Cable MaterialLSZH/PVC/TPUFiber Loss0.35db@1310nm/0.2dB@1550nm
Fiber BrandCorning/YOFCMin.bending Radius(Long Term)20D
Working Wavelength1310/1550(SM)Durability≥500 times
Min.bending Radius(Short Term)10DBranch Tensile StrengthConsistent with the main cable
Operating Temperature-10 to 70℃ (14 to 158℉)Storage Temperature-40 to 85℃ (-40 to 185℉)

Product Presentation

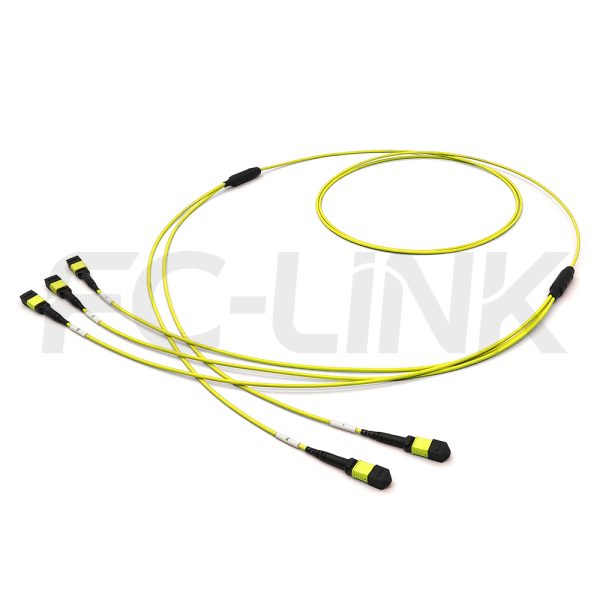

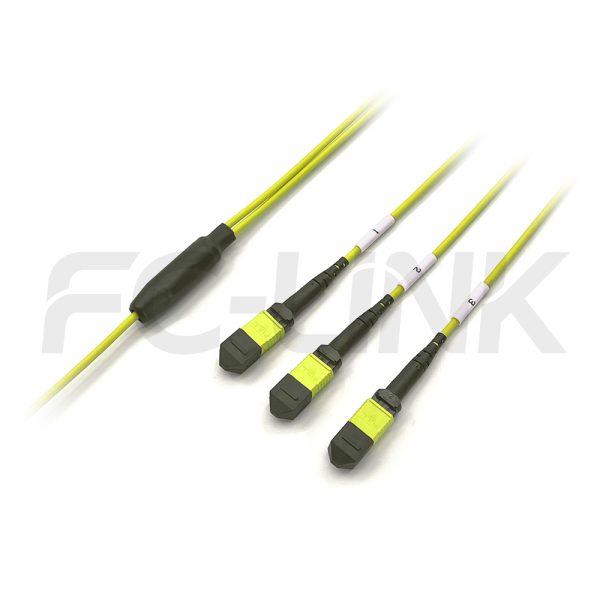

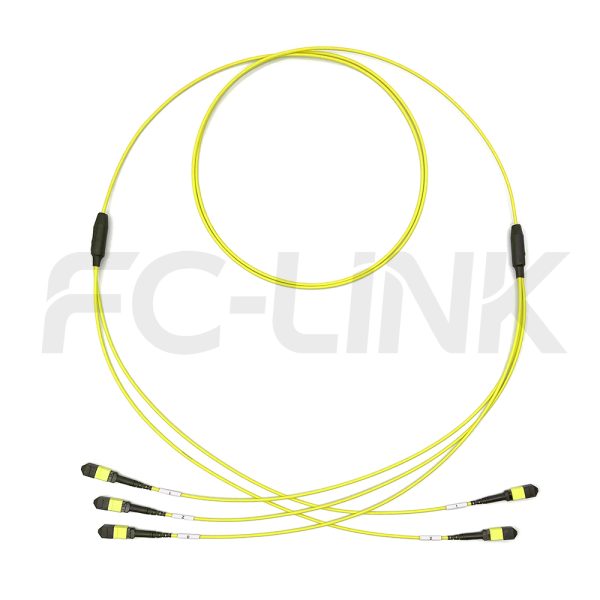

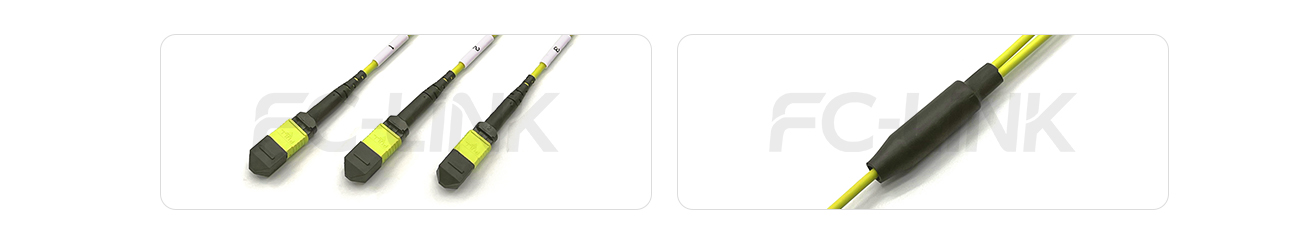

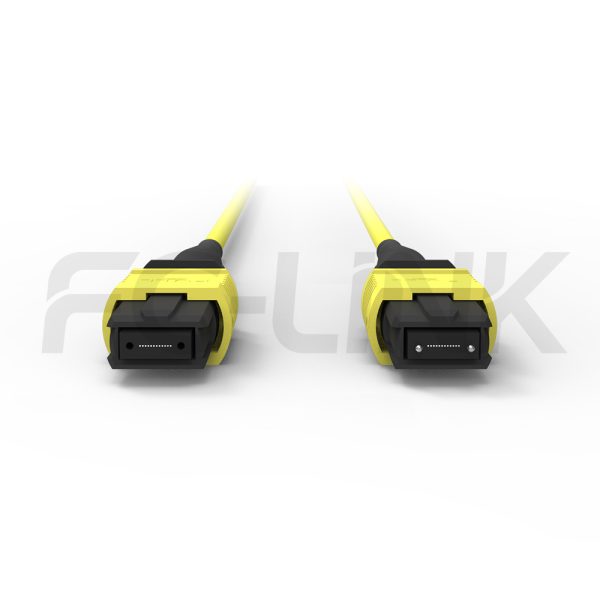

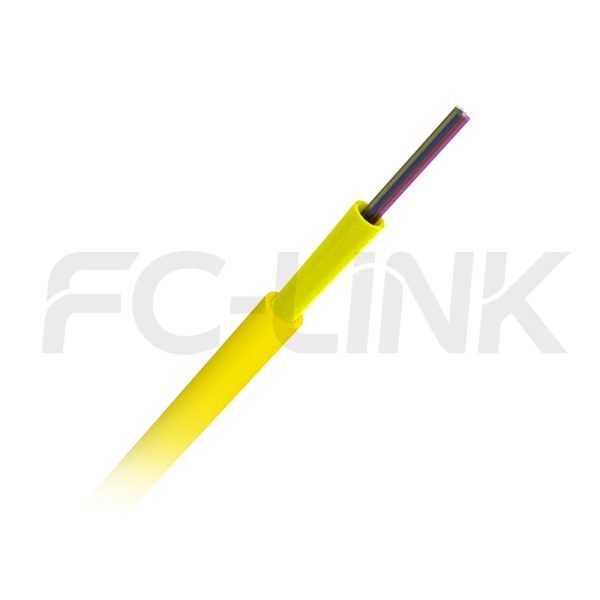

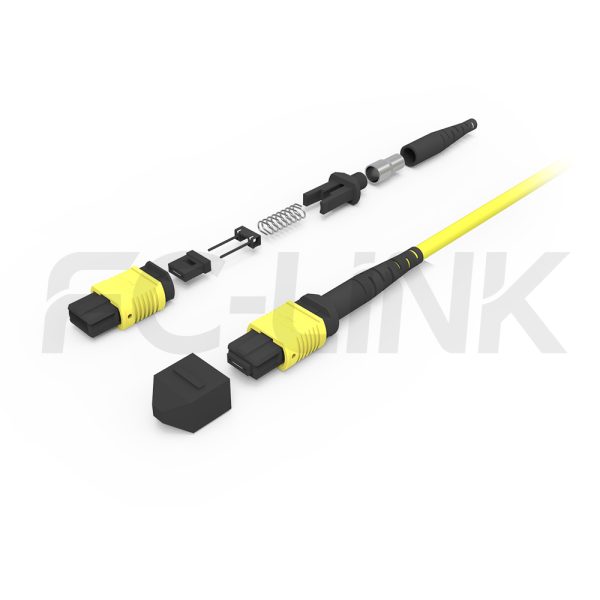

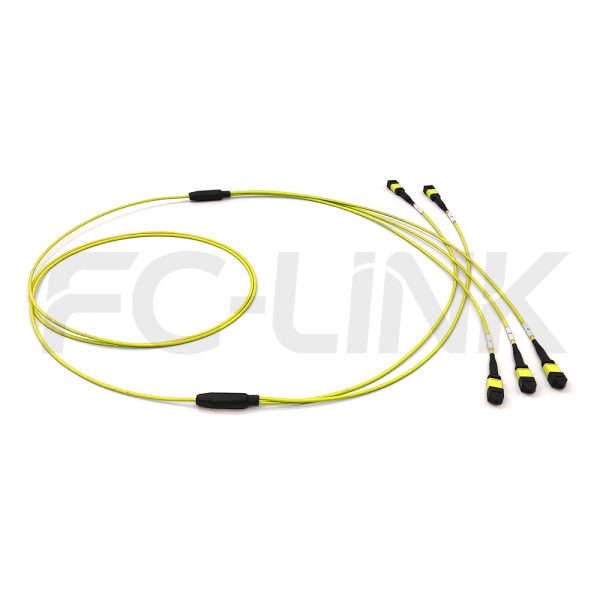

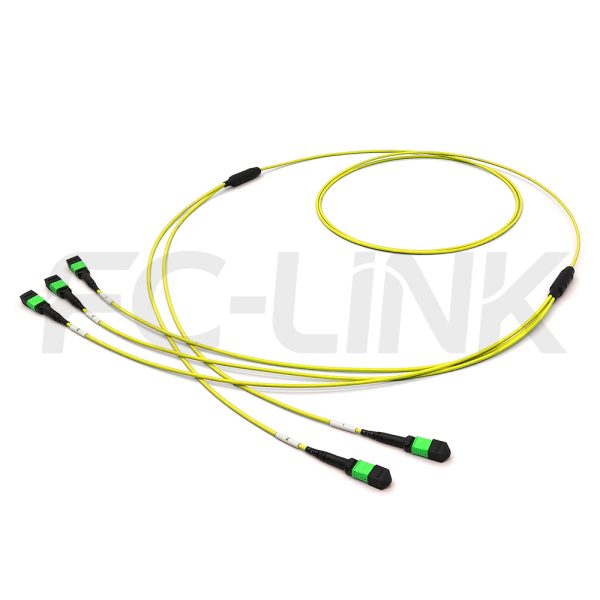

This 24-Fiber 2 x MPO-12 to 3 x MPO-8 OS2 Singlemode Breakout Cable is engineered to manage the most complex, multi-protocol Singlemode backbones. It offers a unique dual MPO-12 input that fans out to three 8-fiber MPO links, making it universally applicable to multiple applications and protocols. This structure is critical for efficient Optical transceiver interconnection, supporting systems that utilize MPO 4-channel dual-fiber bidirectional transmission and those optimized for MPO 8-channel single-fiber bidirectional transmission. This high-density consolidation guarantees superior Elite Low Loss (IL Max ≤ 0.35dB) for all long-distance Singlemode services.
