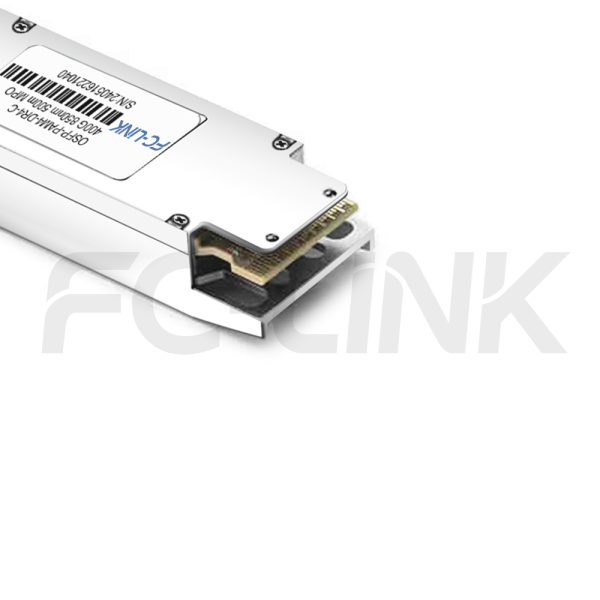

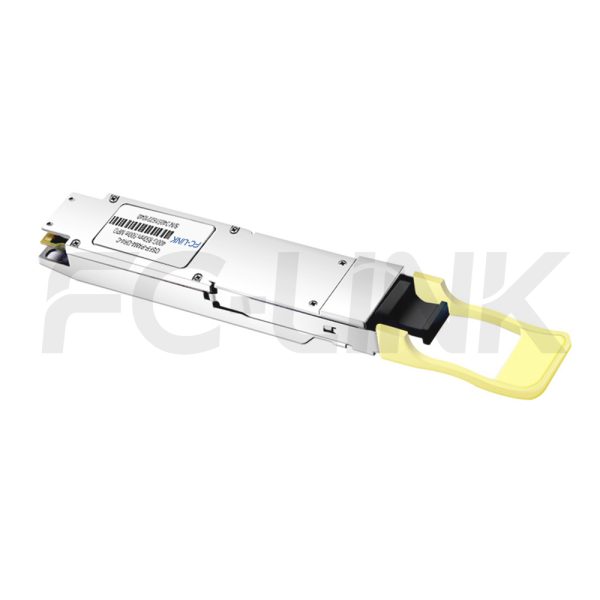

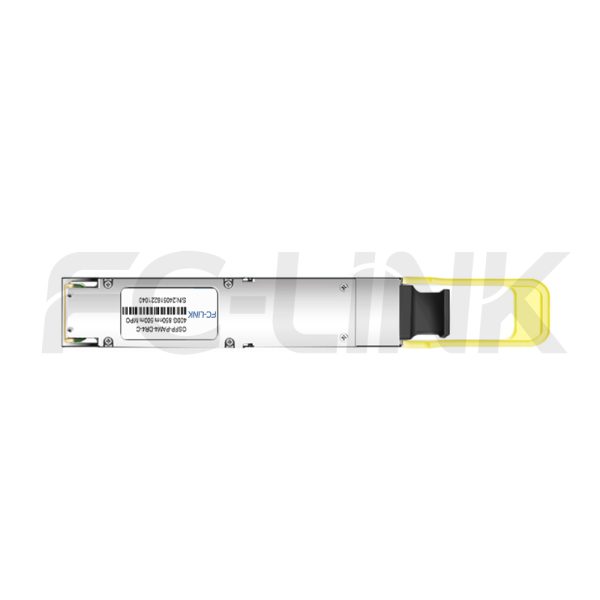

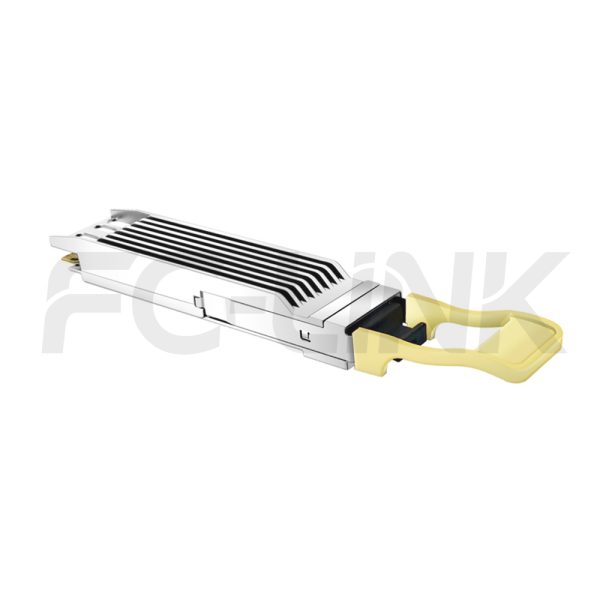

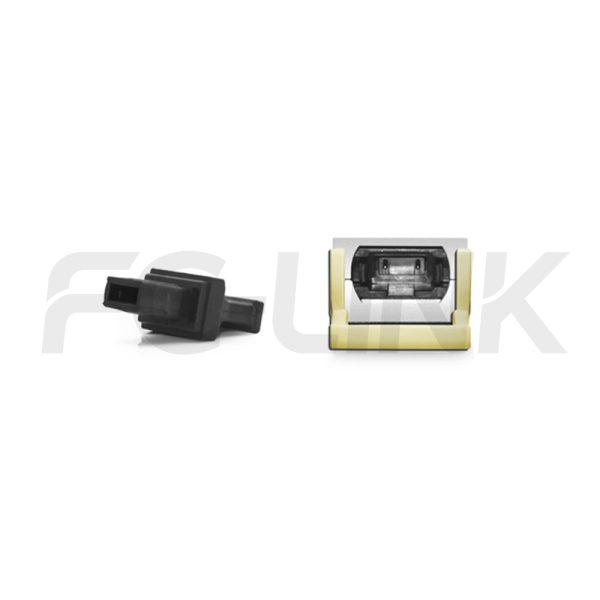

The FC-LINK OSFP 400G (4x100G) 1310nm 500m DR4 MPO8/12 Transceiver is a high-performance optical module designed for 500m optical communication applications. It converts 8 channels of 50Gb/s (PAM4) electrical input into 4 parallel optical signals, each supporting 100Gb/s, for a total data rate of 400Gb/s. On the receiver side, it reverses the process, converting 4 parallel optical signals of 100Gb/s back into 8 channels of 50Gb/s (PAM4) electrical output.The module features an MPO-12 connector for optical connections, with guide pins inside the receptacle ensuring proper alignment. To maintain accurate channel-to-channel connectivity, the cable should not be twisted. Electrical connections are achieved via an OSFP MSA-compliant edge-type connector.Designed according to the OSFP Multi-Source Agreement (MSA) Type 2, the transceiver integrates a compact form factor, robust optical/electrical connections, and a digital diagnostic interface. It is engineered to withstand harsh external conditions, including extreme temperatures, high humidity, and EMI interference, ensuring reliable performance in demanding environments.

SPECIFICATIONS
Product ModelOSFP-400(4x100)-13-05(DR4)-MPO8/12Manufacturer brandFC-LINK
Package TypeOSFPOptical connectorMPO 8C/12C
Max Data Rate400GbpsChannel Data Rate53.125Gbps
Effective transmission distance500m
Wavelength1310nmOperating voltage3.3V
Fiber TypeSMFCore Size9/125
Transmitter TypeDFBReceiver TypePIN
TX Power-2.9~4.0dBmReceiver Sensitivity-4.4dBm
Digital Optical Monitoring(DOM)YESReceiver Overload4dBm
Power Consumption<12WProtocolsIEEE802.3bs and OSFP MSA
CMlS 4.0 12C interface
4x100G DR4 applications
Data center
Operating temperature(Commercial)0℃~+70℃Storage Temperature(Commercial)-40℃~+85℃
Data center optical transceiver application scenario
Server-to-Switch Data Center Links

Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.

Enterprise network fiber optic application scenario
Building-to-Building Campus Backbone

Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.

Telecom fiber optic link application scenario
Access-to-Core Enterprise Uplinks

Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.

Industrial fiber optic network application scenario
Industrial Switching in Harsh Environments

Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.

Network topology background
1
1
1

Compatible Brands

Customization Options

Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
Absolute Maximum Ratings
ParameterSymbolMin.Max.Unit
Power supply voltageVCC-0.53.6V
Storage temperatureTC-4085°C
Relative humidityRH085%
These values represent the damage threshold of the module.Stress in excess of any of theindividual absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Recommended Operating Environment
ParameterSymbolMin.TypicalMaxUnit
Power supply voltageVCC3.153.33.45V
Operating case temperatureTca0-70℃
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Electrical Characteristics
ParameterSymbolMinTypicalMaxUnitNotes
Data rate per laneDR-53.125-Gbps-
Transmitter
Input differential impedanceRin90100110Ω-
Differential input voltage swingVin900-1100mVp-p-
Receiver
Differential output swingVout--900mVp-p-
Output differential impedanceRout90100110Ω-
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Optical Characteristics
ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Center wavelengthλ1304.513101317.5nm-
Data rate,each lane-53.125±100ppmGBd-
Side-mode suppression ratioSMSR30--dB-
Average optical power,per lanePo-2.9-4dBm1
Extinction ratioER3.5--dBm-
Outer optical modulation amplitudeOMAouter-0.8-4.2dBm-
Transmitterand dispersion eyeTDECQ--3.4dB-
Optical return loss toleranceORL--21.4dB-
Receiver
Center wavelengthλ1304.513101317.5nm-
Data rate,each lane-53.125±100ppmGBd-
Average receive power,each lane--5.9-4dBm-
Receive power(OMAouter),each lane---4.2dBm-
Receiver sensitivity(OMAouter),----4.4dBm2
LOS assertedLsa-15--dBm-
LOS de-assertedLda---8.9dBm-
LOS hysteresisLh0.5--dB-
Note:
[1]Averagelaunch power,each lane(min)is informative and notthe principal indicator of signal strength.
[2]Atransmitter with launch power below this value cannot be compliant;however,a value abovethis does not ensure compliance
[3]Receiver sensitivity (OMAouter),each lane(max)is informative and is defined for a transmitter with SECQ of 0.9dB.
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

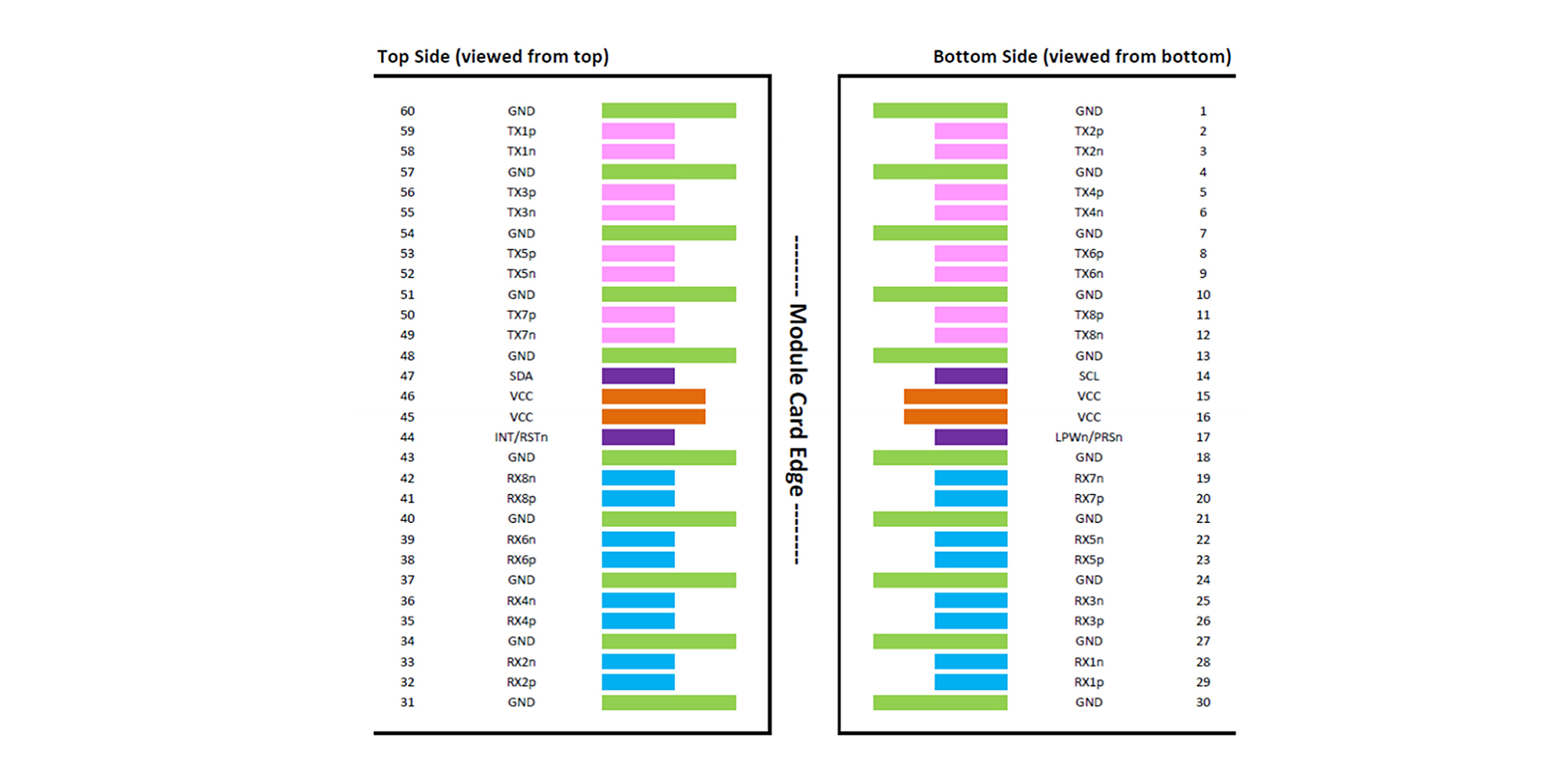

OSFP Transceiver Electrical Pad Layout
