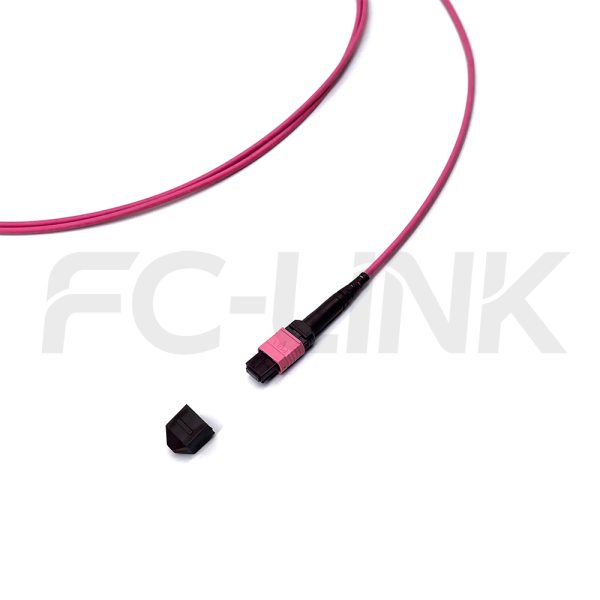

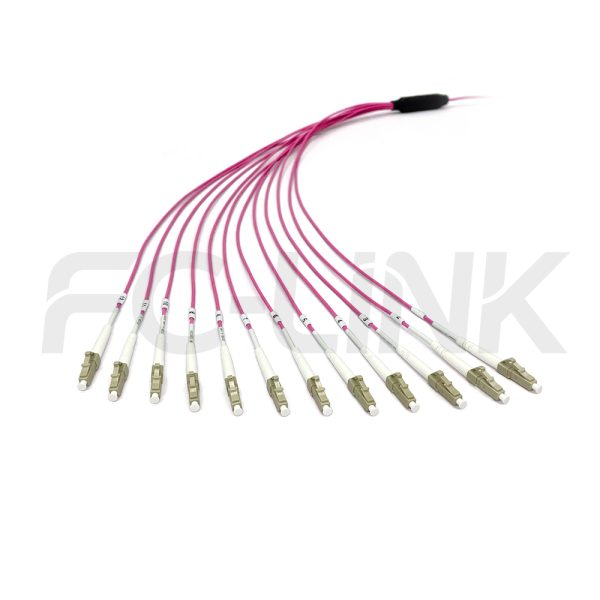

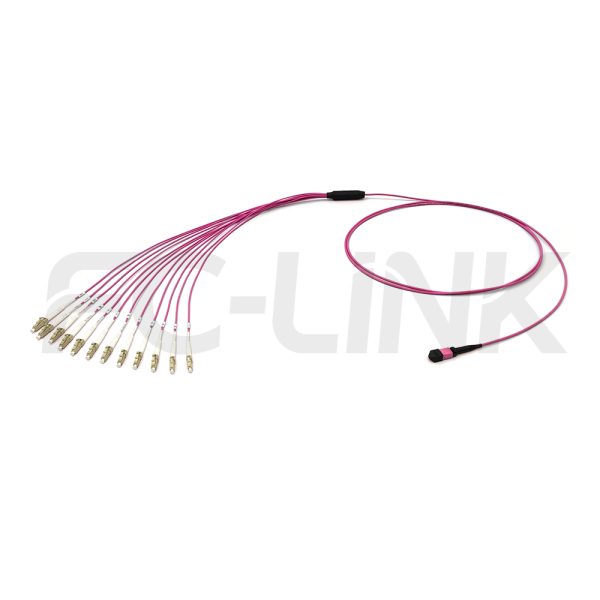

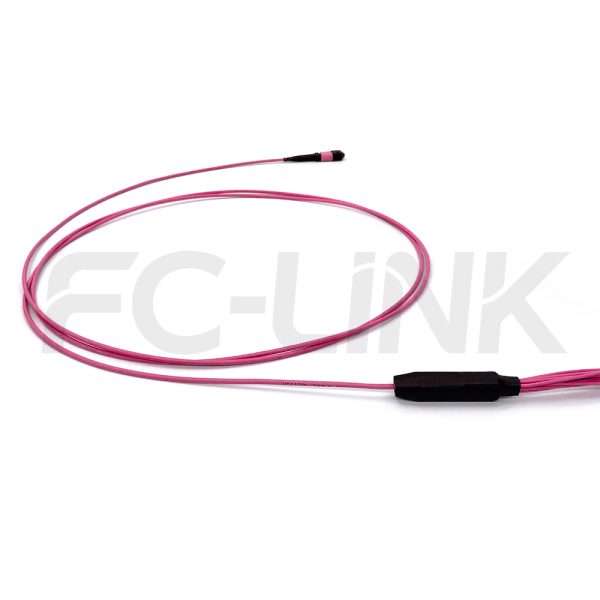

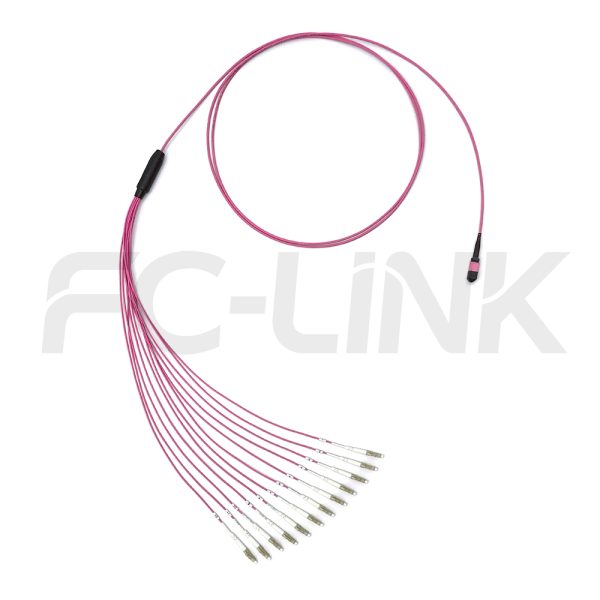

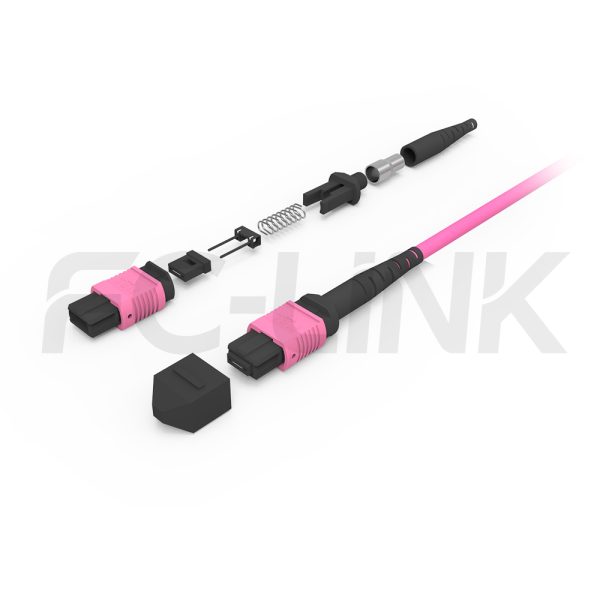

Name: MPO Harness Cable, MPO-12 PC/APC(Female/Male) to LC PC/APC, 12 Fibers, Multimode(OM4), 0.35dB Max, Type A/AF/B/U, Aqua/Violet - www.fc-link.com
Brand: FC-LINK
SKU: Alternative MPO Jumper+MPO Cassette combination
Availability: InStock

OVERVIEW & SPECS COMPATIBILITY & CUSTOMIZATION APPLICATIONS TECHNICAL RESOURCES QUALITY ASSURANCE CONTACT US

SPECIFICATIONS
Connector A	MPO	Connector B	LC
Fiber Type	OM4	Fiber Number	12 Fibers
MPO IL	Standard loss/Low loss	Polishing	PC or APC
Branching Type	Equal length/Unequal length	Connector Boot Type	Round fiber
Connector Type	Female/Male	RL	≥20dB (MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Breakout Outside Diameter (OD)	2.0/3.0mm	Cable Color	Aqua/Violet
Breakout Length	0.3-1.5m	Flame Retardant Grade	OFN/OFNR/OFNP
Cable Material	LSZH/PVC/TPU	Fiber Loss	2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Min.bending Radius(Long Term)	20D
Working Wavelength	850/1300(MM)	Durability	≥500 times
Min.bending Radius(Short Term)	10D	Polarity	TYPE A/AF/B/U
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

Product Presentation

This 12-Fiber MPO OM4 Multimode Harness Cable serves as a vital link in data center backbones, designed to handle the increased power and speed requirements of current and next-generation systems, including 10G to 40G and 25G to 100G links. It provides an efficient and high-reliability Alternative to the MPO Jumper + MPO Cassette combination. The cable seamlessly transitions from a single MPO PC/APC (Female/Male) connector to LC PC/APC connectors. Performance is ensured by Corning/YOFC fiber, achieving Elite Low Loss with an IL Max of ≤ 0.35dB and supporting versatile Type A/AF/B/U Polarity options within its Violet/Aqua jacket.

MPO&MTP Harness Cable Series Products

Customization Options

Vendor Coding

Private Label

Custom Part Number

Packaging Design

Temperature Grade Selection

Application

Performance Parameter

Technical Performance
Ferrule type	Insertion loss		Return loss
	Typical	Maximum
SM standard loss	0.20dB	≤0.75dB	≥ 60dB （APC 8°）
SM low loss	0.10dB	≤0.35dB
MM standard loss	0.20dB	≤0.6dB	≥ 20dB
MM low loss	0.10dB	≤0.35dB

MT Ferrule Options
Fiber mode	Performance	Fiber count
Single mode	Standard loss	12 (1x12)
		24 (2x12)
	Low loss	12 (1x12)
Multimode	Standard loss	12 (1x12)
		16 (1x16)
		24 (2x12)
		32 (2x16)
	Low loss	12 (1x12)
		24 (2x12)

Cable Parameter
Items		Specifications
Fiber Count		2	4	6	8	12	24
Fiber	Diameter	250±15μm
	Color	Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua
Strength Member		Aramid Yarn
Outer Jacket	Diameter	3.0±0.2mm
	Material	PVC /LSZH
	Color	Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua

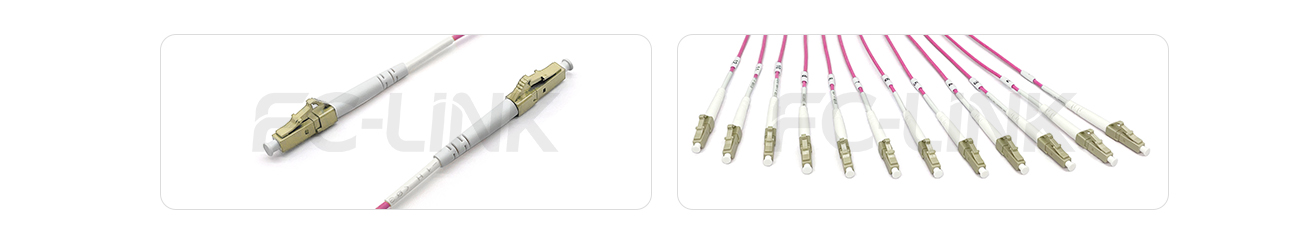

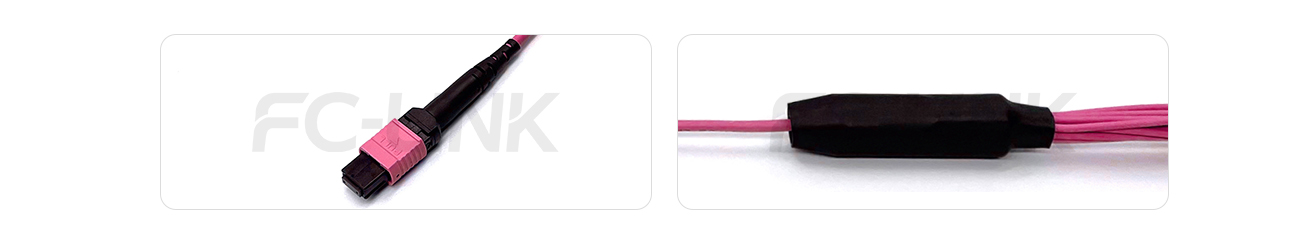

Detail Display

Fiber Optic Cable Structure

Mechanical Performance
Items	Specifications
Fiber Count	2	4	6	8	12	24
Tensile Strength (Long Term) / N	80
Tensile Strength (Short Term)/ N	150
Crush Resistance (Long Term) / N/10cm	150			100
Crush Resistance (Long Term) / N/10cm	500
Min. Bend Radius (Dynamic) / mm	20D
Min. Bend Radius (Static)/ mm	10D
Operating Temperature/℃	-20～+60
Storage Temperature/℃	-20～+60

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
