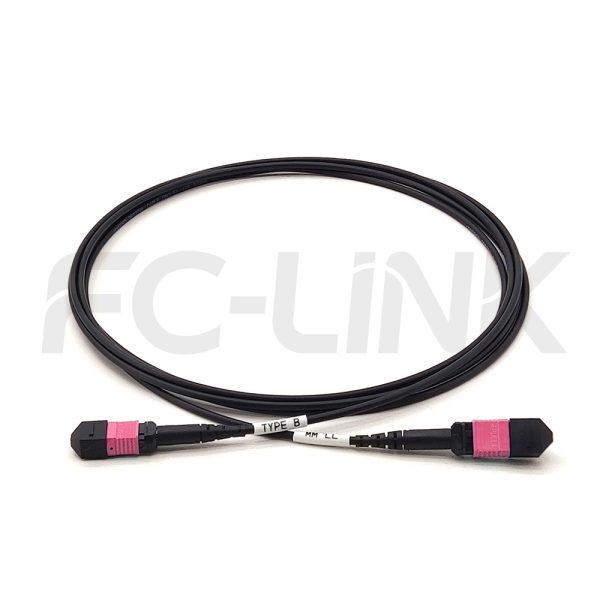

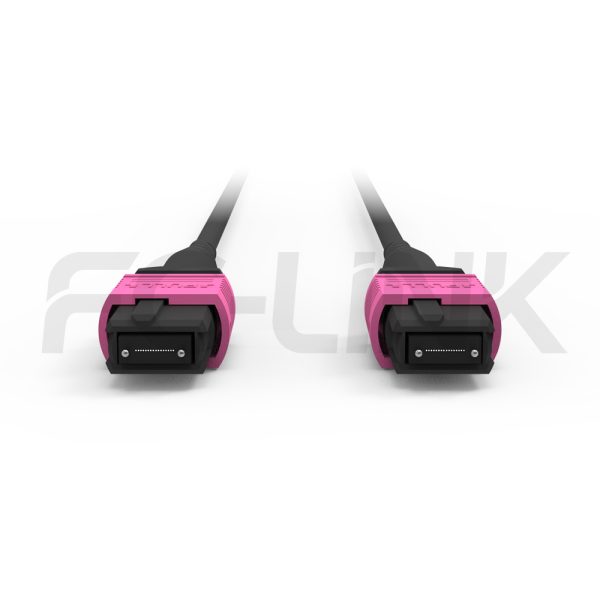

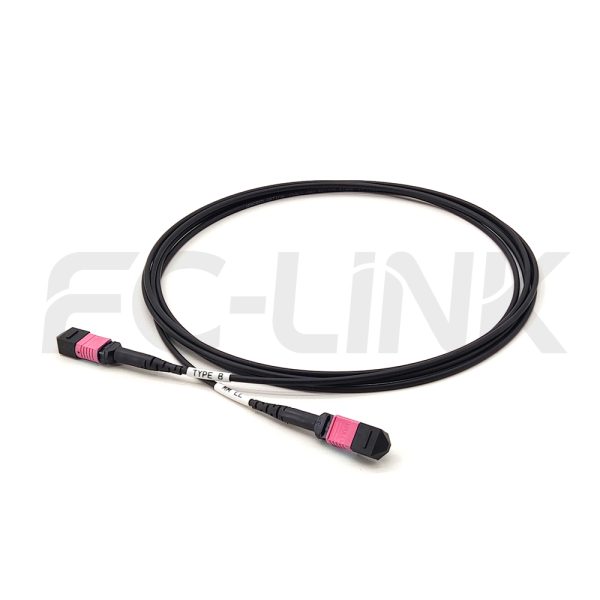

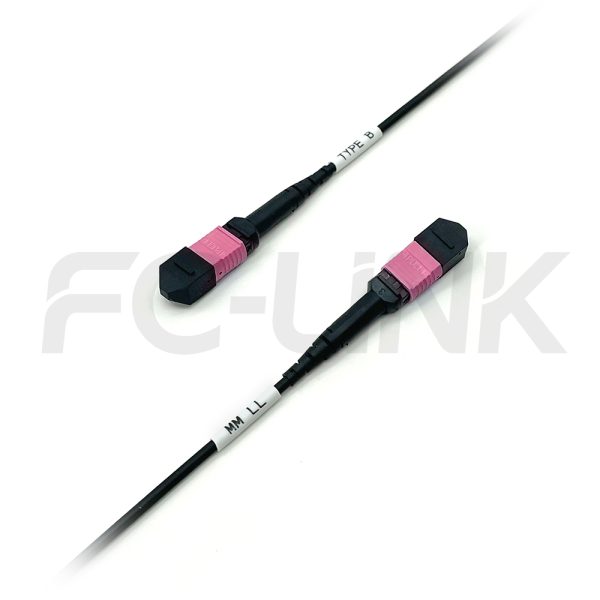

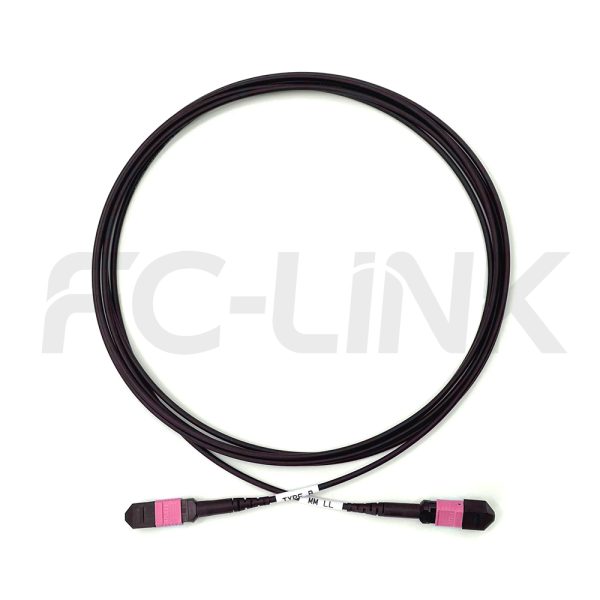

Name: Armored MPO-16 Fiber Optic Cable - MPO to MPO OM4 Multimode, 16-Fiber Armored Jumper Cord, for 400G/800G SR8 Extended Reach, PC/APC Polish (Female/Male), Type B, Aqua/Violet - www.fc-link.com
Brand: FC-LINK
SKU: 400G QSFPDD SR8（UP to 100M） 400G OSFP SR8（UP to 100M） 800G QSFPDD SR8（UP to 50M） 800G OSFP VR8（UP to 50M）
Availability: InStock

Armored MPO-16 Fiber Optic Cable – MPO to MPO OM4 Multimode, 16-Fiber Armored Jumper Cord, for 400G/800G SR8 Extended Reach, PC/APC Polish (Female/Male), Type B, Aqua/Violet

400G QSFPDD SR8（UP to 100M）
400G OSFP SR8（UP to 100M）
800G QSFPDD SR8（UP to 50M）
800G OSFP VR8（UP to 50M）

Broad Multi-Brand Compatibility
Flexible Customization Support
Tested for Reliable Performance
Fast Response & Delivery
Professional Technical Support

OVERVIEW & SPECS COMPATIBILITY & CUSTOMIZATION APPLICATIONS TECHNICAL RESOURCES QUALITY ASSURANCE CONTACT US

SPECIFICATIONS
Connector A	MPO	Connector B	MPO
Fiber Type	OM4	Fiber Number	16 Fibers
MPO IL	Standard loss/Low loss	Polishing	PC or APC
Connector Housing Color	Aqua/Violet/Green	Connector Boot Type	Round fiber
Connector Type	Female/Male	RL	≥20dB(MM)
IL(Typical)	0.1/0.2dB	IL(Max. Value)	0.35/0.6dB
Type Of Armored	Single/Double layer armored	Cable Color	Aqua/Violet
Cable Outer Diameter	3.0/3.5/5.0mm	Flame Retardant Grade	OFN/OFNR/OFNP
Cable Material	LSZH/PVC/TPU	Fiber Loss	2.4dB@850nm/0.6dB@1300nm
Fiber Brand	Corning/YOFC	Min.bending Radius(Long Term)	20D
Working Wavelength	850/1300(MM)	Durability	≥500 times
Min.bending Radius(Short Term)	10D	Polarity	TYPE B
Operating Temperature	-10 to 70℃ (14 to 158℉)	Storage Temperature	-40 to 85℃ (-40 to 185℉)

Product Presentation

This armored 16-fiber MPO to MPO OM4 Multimode fiber optic cable is engineered for protected, extended-reach solutions, supporting 400G SR8 and 800G SR8/VR8 applications. MPO is an optical fiber connector adopted by IEEE standard for 40G / 100G. Committed to the production of fiber optical patch cord for 19 years, PHILISUN has built an experienced R & D team. This OM4 MPO cable features MPO (Female/Male) connectors with PC/APC polish (RL ≥20dB), available in low loss (≤0.35dB) options, supporting Type B polarity. The PHILISUN MPO patch cord is 100% tested and passes 3D IEC standard, providing high-performance Multimode fiber connectivity in protected installations.

MPO Armored Series Products

Customization Options

Vendor Coding

Private Label

Custom Part Number

Packaging Design

Temperature Grade Selection

Application

Performance Parameter

Technical Performance
Ferrule type	Insertion loss		Return loss
	Typical	Maximum
SM standard loss	0.20dB	≤0.75dB	≥ 60dB （APC 8°）
SM low loss	0.10dB	≤0.35dB
MM standard loss	0.20dB	≤0.6dB	≥ 20dB
MM low loss	0.10dB	≤0.35dB

MT Ferrule Options
Fiber mode	Performance	Fiber count
Single mode	Standard loss	12 (1x12)
		24 (2x12)
	Low loss	12 (1x12)
Multimode	Standard loss	12 (1x12)
		16 (1x16)
		24 (2x12)
		32 (2x16)
	Low loss	12 (1x12)
		24 (2x12)

Cable Parameter
Items		Specifications
Fiber Count		1~12	24
Metal tube	Metal tube material	Stainless steel	Stainless steel
	Metal tube diameter	2.1~2.2mm	2.8±0.1mm
	Metal tube thickness	0.25~0.28mm	0.25~0.28mm
Outer jacket	Dimension	3.0±0.1mm	5.0±0.2mm
	Material	PVC/LSZH/PU
	Color	Yellow(SM) / Orange(MM) /Aqua(OM3)/Violet(OM4) or Customization

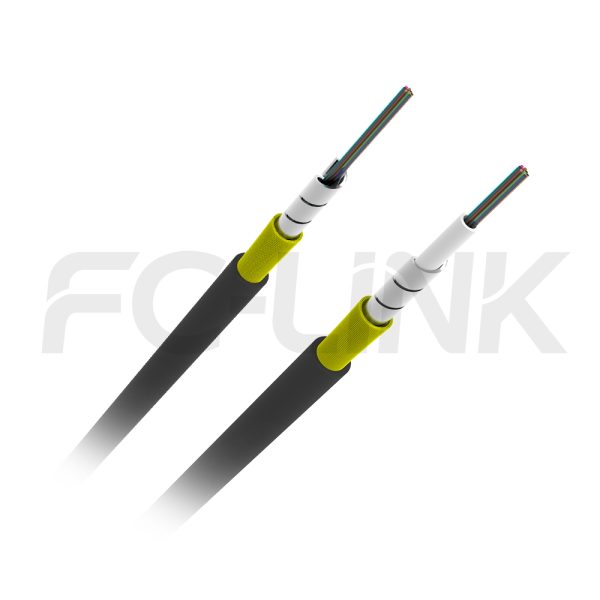

Fiber Optic Cable Structure

Mechanical Performance
Items	Specifications
Fiber Count	1~12	24
Tension（Long term）/ N	500	300
Tension（Short term）/ N	800	600
Crush（Long term）/ N/10cm	800	200
Crush（Short term）/ N/10cm	1200	600
Min. bend radius（Dynamic）/ mm	20D
Min. bend radius（Static）/ mm	10D
Operating temperature/℃	-20～+60
Storage temperature/℃	-20～+60

SM Fiber Parameter
Items		Unit	G.652D	G.657A1	G.657A2
Mode Field Diameter	1310nm	μm	9.1±0.4	8.8±0.4	8.8±0.4
Mode Field Diameter	1550nm	μm	10.4±0.5	9.8±0.5	9.8±0.5
Cladding Diameter		μm	125±1	125±0.7	125±0.7
Cladding Non-Circularity		%	≤1	≤0.7	≤0.7
Core-Cladding Concentricity Error		μm	≤0.6	≤0.5	≤0.5
Coating Diameter		μm	245±7	245±5	245±5
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0
Cable Cutoff Wavelength		nm	λcc≤1260	λcc≤1260	λcc≤1260
Cable Attenuation Coefficient	1310nm	dB/km	≤0.4	≤0.4	≤0.4
Cable Attenuation Coefficient	1550nm	dB/km	≤0.3	≤0.3	≤0.3

MM Fiber Parameter
Items		unit	62.5/125	50/125	OM3-150	OM3-300	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-Circularity		%	≤5.0	≤5.0	≤5.0	≤5.0	≤5.0
Cladding Non-Circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Core-Cladding Concentricity Error		μm	≤1.5	≤1.5	≤1.0	≤1.0	≤1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7	245±7
Coating Non-Circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Cladding-Coating Concentricity Error		μm	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
OFL Bandwidth	850nm	MHz·km	≥160	≥500	≥700	≥1500	≥3500
OFL Bandwidth	1300nm	MHz·km	≥500	≥500	≥500	≥500	≥500
Cable Attenuation Coefficient	850nm	dB/km	≤3.0	≤3.0	≤3.0	≤3.0	≤3.0
Cable Attenuation Coefficient	1300nm	dB/km	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
