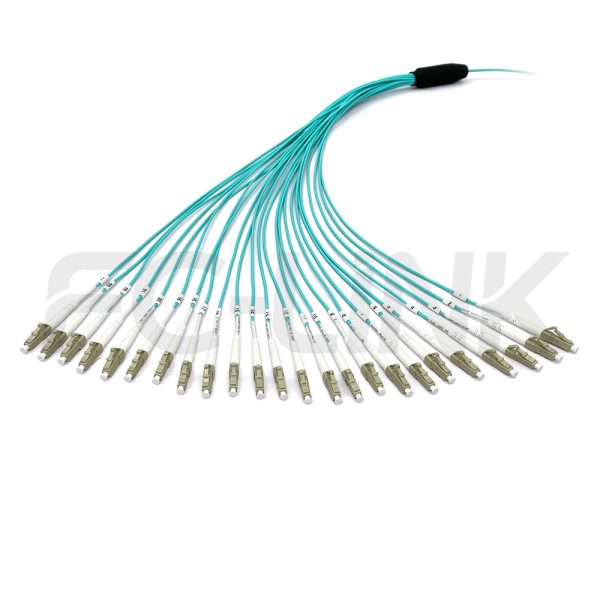

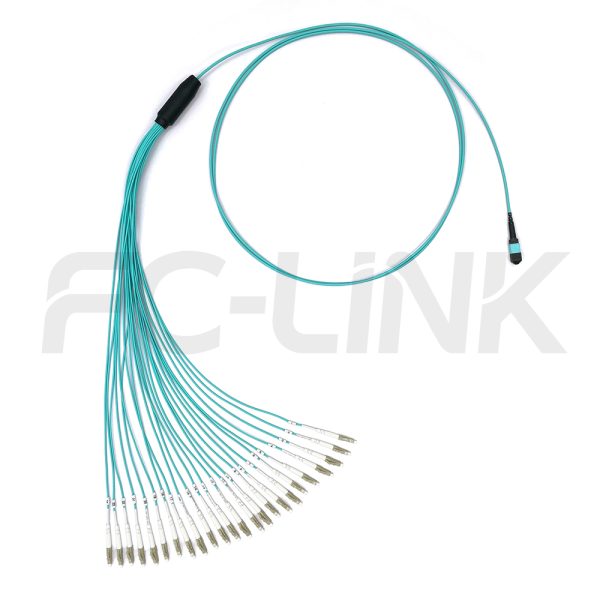

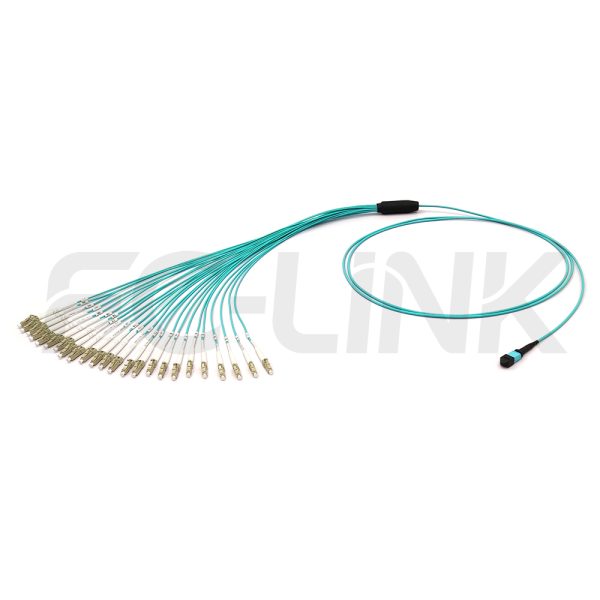

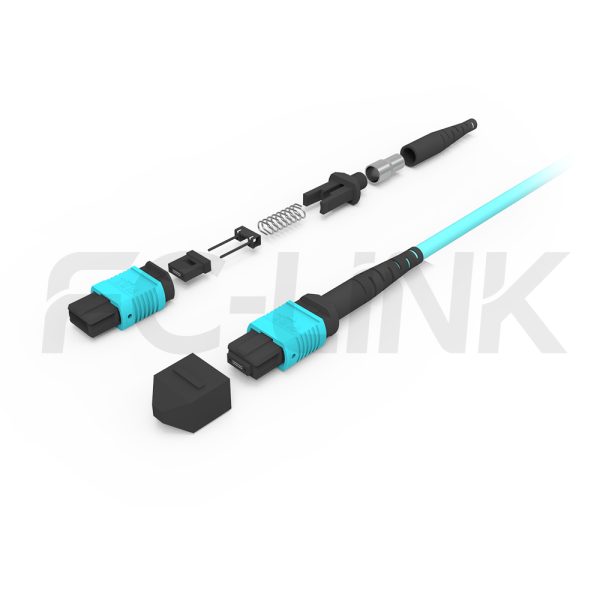

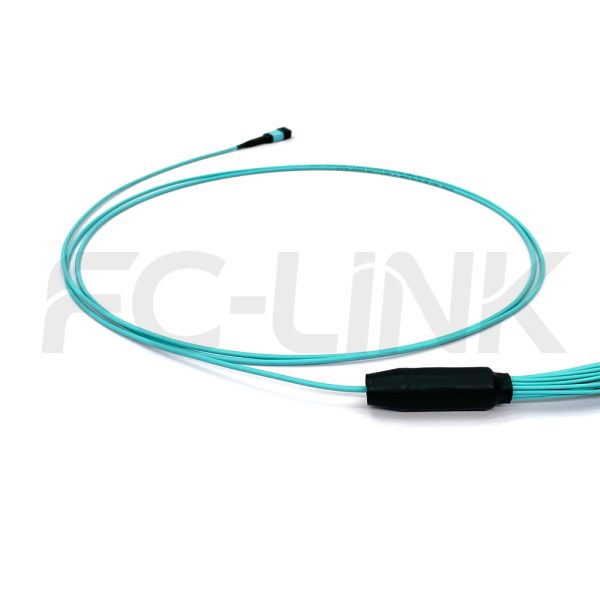

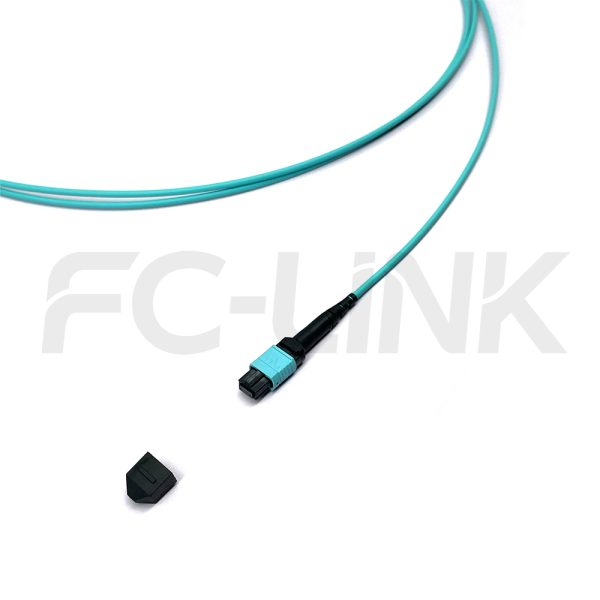

MPO Harness Cable, MPO-24 PC/APC(Female/Male) to LC PC/APC, 24 Fibers, Multimode(OM3), 0.35dB Max, Type A/B/C/U, Aqua
Alternative MPO Jumper+MPO Cassette combination
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | LC |
| Fiber Type | OM3 | Fiber Number | 24 Fibers |
| MPO IL | Standard loss/Low loss | Polishing | PC or APC |
| Branching Type | Equal length/Unequal length | Connector Boot Type | Round fiber |
| Connector Type | Female/Male | RL | ≥20dB (MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. Value) | 0.35/0.6dB |
| Breakout Outside Diameter (OD) | 2.0/3.0mm | Cable Color | Aqua |
| Breakout Length | 0.3-1.5m | Flame Retardant Grade | OFN/OFNR/OFNP |
| Cable Material | LSZH/PVC/TPU | Fiber Loss | 2.4dB@850nm/0.6dB@1300nm |
| Fiber Brand | Corning/YOFC | Min.bending Radius(Long Term) | 20D |
| Working Wavelength | 850/1300(MM) | Durability | ≥500 times |
| Min.bending Radius(Short Term) | 10D | Polarity | TYPE A/B/C/U |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |

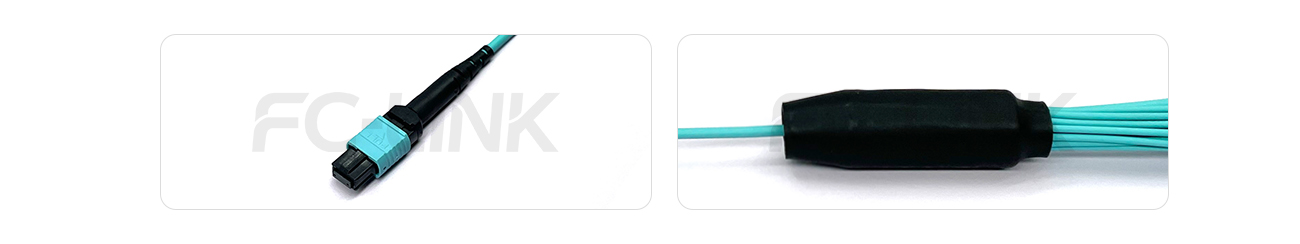

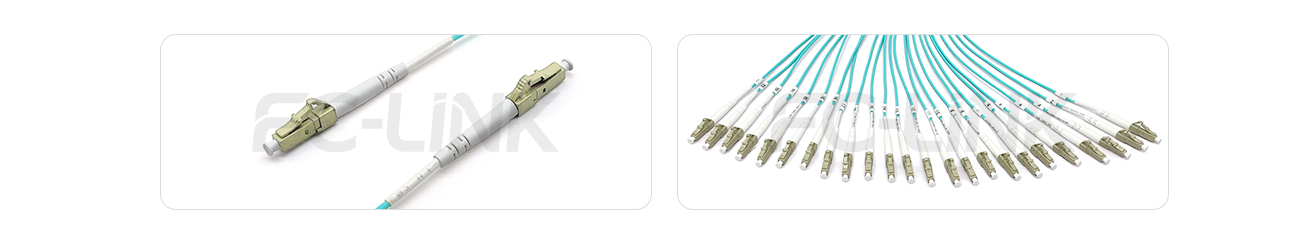

Product Presentation
This 24-Fiber MPO OM3 Multimode Harness Cable is built for applications requiring the highest level of fiber consolidation and efficiency, facilitating high-bandwidth connectivity for advanced network architectures supporting 10G to 40G and 25G to 100G. It offers a compelling, time-saving Alternative to the MPO Jumper + MPO Cassette combination. The assembly breaks out from a central MPO PC/APC (Female/Male) connector to LC PC/APC connectors, maximizing port density. It delivers Elite Low Loss performance (IL Max ≤ 0.35dB) and is constructed with reliable Corning/YOFC fiber.
