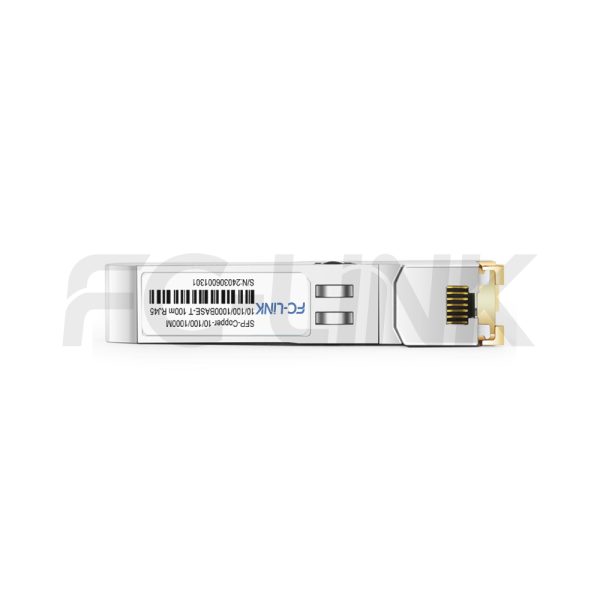

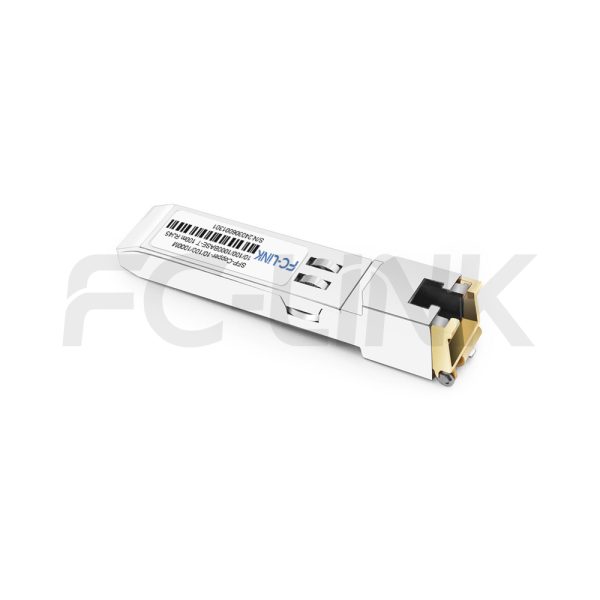

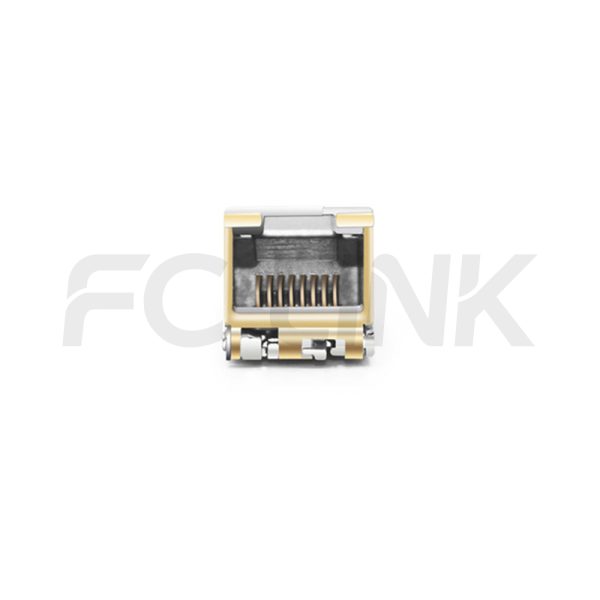

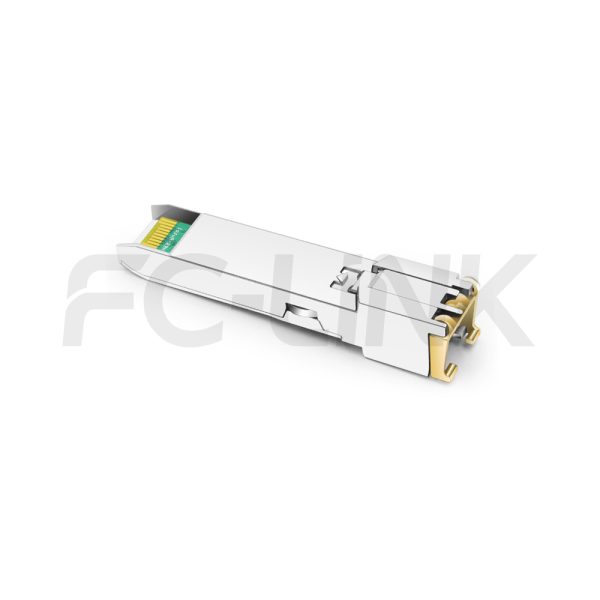

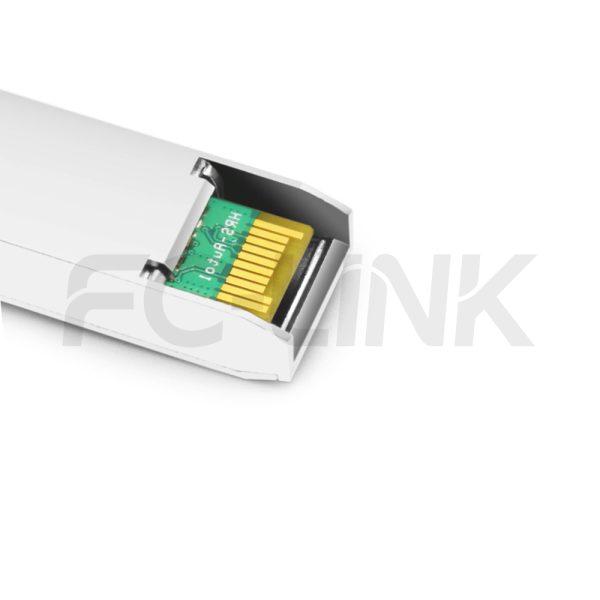

Generic Compatible 10/100/1000BASE-T SFP 100m Copper RJ45 Transceiver Module
SFPCO-1A-01-RJ45-SGMII
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
The FC-LINK SFP-Copper 10/100/1000BASE-T 100m RJ45 transceiver is a versatile Small Form Pluggable (SFP) module for 10/100/1000BASE-T applications, developed in line with the SFP Multi-Source Agreement (MSA). It adheres to the Gigabit Ethernet standard as outlined in IEEE STD 802.3, ensuring reliable performance across 10/100/1000BASE-T networks.
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | SFPCO-1A-01-RJ45-SGMII | Manufacturer brand | FC-LINK |
| Package Type | SFP | Interface Type | RJ45 |
| Max Data Rate | 1000Mbps | 10G Effective transmission distance(OM4) | 100m |
| Hot-Pluggable SFP | YES | Operating voltage | 3.3V |
| Power Consumption | 1.05 W | Protocols | SFP MSA IEEE Std 802.3 |
| Operating Temperature(Commercial) | 0℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |
| Operating Temperature(Industrial) | -40℃~+85℃ | Storage Temperature(Industrial) | -40℃~+85℃ |

Server-to-Switch Data Center Links
Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.

Building-to-Building Campus Backbone
Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.

Access-to-Core Enterprise Uplinks
Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.

Industrial Switching in Harsh Environments
Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Typ | Max. | |||||
| Maximum supply voltage | Vcc | -0.5 | - | 4.0 | |||||
| Storage temperature | TS | -40 | - | +85 | |||||
| *Exceeding any one of these values may destroy the device immediately. | |||||||||
| Normal Operating Condition | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | ||||
| Operating case temperature | Tc | 0 | - | 70 | °C | ||||
| -40 | - | 85 | |||||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Date rate | - | 10 | - | 1000 | Mbps | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | |||
| +3.3 Volt Electrical Power Interface | |||||||||
| Supply current | Icc | - | 300 | 350 | mA | - | |||
| Input voltage | Vcc | 3.13 | 3.3 | 3.45 | V | - | |||
| Surge vurrent | Isurge | - | - | 30 | mA | - | |||
| Low-Speed Signals, Electronic Characteristics | |||||||||
| SFP output low | VOL | 0 | - | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | |||
| SFP output high | VOH | host_Vcc-0.5 | - | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | |||
| SFP input low | VIL | 0 | - | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| SFP input high | VIH | 2 | - | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | |||
| High-Speed Electrical Interface, Transmission Line-SFP | |||||||||
| Line baud rates | fL | - | 125 | - | MHz | MLT-3 encoding per IEEE802.3u | |||
| TX output impedance | Zout, TX | - | 100 | - | Ohm | Differential, AC coupled Internally | |||
| RX input impedance | Zin, RX | - | 100 | - | Ohm | Differential, AC coupled Internally | |||
| High-Speed Electrical Interface, Host-SFP | |||||||||
| Single ended data input swing | Vin | 250 | - | 1200 | mV | Single ended | |||
| Single ended data output swing | Vout | 350 | - | 800 | mV | Single ended | |||
| Rise/Fall time | Tr, Tf | - | 175 | - | nsec | 20%-80% | |||
| TX Iinput impedance | Zin | - | 50 | - | Ohm | Single ended | |||
| RX output impedance | Zout | - | 50 | - | Ohm | Single ended | |||
| General Specifications | |||||||||
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | |||
| Data rate | - | 10 | - | 1000 | Mbps | - | |||
| Distance | - | - | - | 100 | m | Category 5 UTP. BER <10-12 | |||
| Pin Descriptions | |||||||||
| Pin No. | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | - | |||||
| 2 | TX fault | Transmitter fault indication | 3 | Not used | |||||
| 3 | TX disable | Transmitter disable | 3 | 1 | |||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | 2 | |||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | 2 | |||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | 2 | |||||
| 7 | Rate select | Not connected | 3 | - | |||||
| 8 | LOS | Los of signal | 3 | Not Used | |||||
| 9 | VeeR | Receiver ground | 1 | - | |||||
| 10 | VeeR | Receiver ground | 1 | - | |||||
| 11 | VeeR | Receiver ground | 1 | - | |||||
| 12 | RD- | Inv. received data out | 3 | - | |||||
| 13 | RD+ | Received data out | 3 | - | |||||
| 14 | VeeR | Receiver ground | 1 | - | |||||
| 15 | VccR | Receiver power | 2 | - | |||||
| 16 | VccT | Transmitter power | 2 | - | |||||
| 17 | VeeT | Transmitter ground | 1 | - | |||||
| 18 | TD+ | Transmit data in | 3 | - | |||||
| 19 | TD- | Inv. transmit data in | 3 | - | |||||
| 20 | VeeT | Transmitter ground | 1 | - | |||||
| 1. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V, used to reset the module. 2. Should be pulled up with 4.7k – 10k ohm on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls line low to indicate module is plugged in. | |||||||||

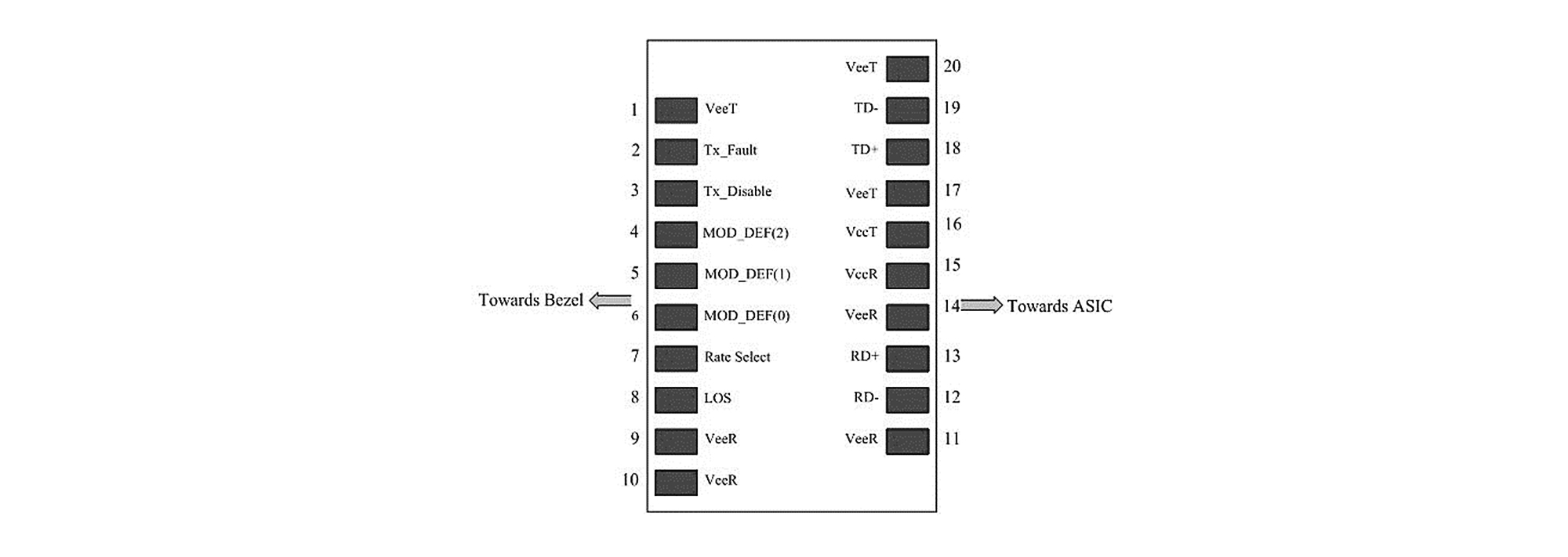

The following is the Diagram of host board connector block pin numbers and names
| SERIAL COMMUNICATION PROTOCOL |
FC-LINK Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA. These SFP use a 128 byte EEPROM with an address of A0H. The 10/100/1000BASE-T physical layer IC can also be accessed via the 2-wire serial bus at address ACH.

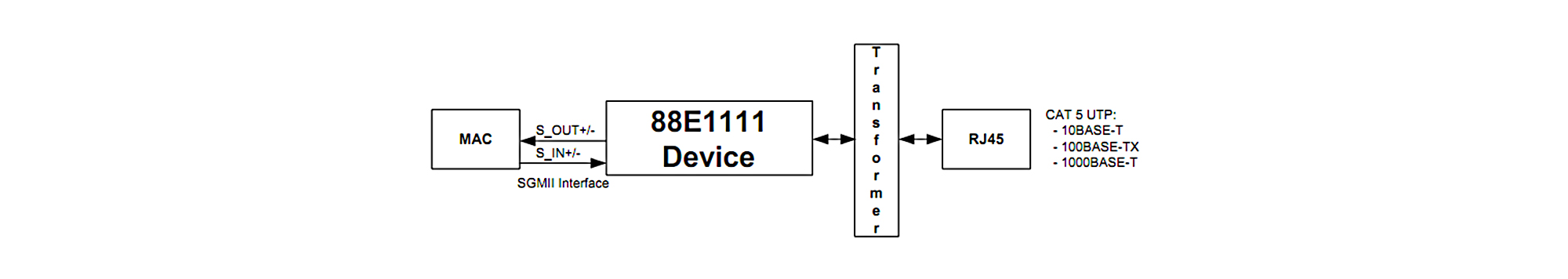

| SGMII TO COPPER MODES |
| Eeprom Serial ID Memory Contents | |||||||||
| Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1. | |||||||||
| Table 1 Serial ID Memory Contents | |||||||||
| Addr. | Size(Bytes) | Name of Field | Hex | Description | |||||
| BASE ID FIELDS | |||||||||
| 0 | 1 | Identifier | 3 | SFP | |||||
| 1 | 1 | Ext. Identifier | 4 | SFP function is defined by serial ID only | |||||
| 2 | 1 | Connector | 22 | RJ-45 | |||||
| 3- 10 | 8 | Transceiver | 00 00 00 08 00 00 00 00 | Transceiver Code | |||||
| 11 | 1 | Encoding | 1 | 8B10B | |||||
| 12 | 1 | BR, Nominal | 0D | 1.25G | |||||
| 13 | 1 | Reserved | 0 | - | |||||
| 14 | 1 | Length (9µm)km | 0 | Transceiver transmit distance | |||||
| 15 | 1 | Length(9µm)100m | 0 | ||||||
| 16 | 1 | Length (50µm) 10m | 0 | ||||||
| 17 | 1 | Length(62.5µm)10m | 0 | ||||||
| 18 | 1 | Length (Copper) | 64 | 100m | |||||
| 19 | 1 | Reserved | 0 | - | |||||
| 20-35 | 16 | Vendor name | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 | Vendor name (ASCII) | |||||
| 36 | 1 | Reserved | 0 | - | |||||
| 37-39 | 3 | Vendor OUI | XX XX XX | - | |||||
| 40-55 | 16 | Vendor PN | XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX | Transceiver part number | |||||
| 56-59 | 4 | Vendor rev | XX XX XX XX | - | |||||
| 60-61 | 2 | Wavelength | 0 | - | |||||
| 62 | 1 | Reserved | 0 | - | |||||
| 63 | 1 | CC_BASE | Check Sum (Variable) | Check code for Base ID Fields | |||||
| EXTENDED ID FIELDS | |||||||||
| 64-65 | 2 | Options | 00 00 | TX_DISABLE, TX_FAULT and Loss of Signal implemented. | |||||
| 66 | 1 | BR,max | 0 | - | |||||
| 67 | 1 | BR,min | 0 | - | |||||
| 68-83 | 16 | Vendor SN | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 | Serial Number of transceiver(ASCII). For example “B000822” . | |||||
| 84-91 | 8 | Date code | XX XX XX XX XX XX XX XX | Manufacture date code. For example “080405” . | |||||
| 92 | 1 | Diagnostic Monitoring Type | XX | Digital diagnostic monitoring implemented | |||||
| 93 | 1 | Enhanced Options | XX | Optional flags | |||||
| 94 | 1 | SFF_8472 Compliance | XX | 01 for diagnostics (Rev9.3 SFF-8472). | |||||
| 95 | 1 | CC_EXT | Check Sum (Variable) | Check sum for Extended ID Field. | |||||
| VENDOR SPECIFIC ID FIELDS | |||||||||
| 96-127 | 32 | Vendor Specific | Read only | Depends on customer information | |||||
| 128-255 | 128 | Reserved | Read only | - | |||||
