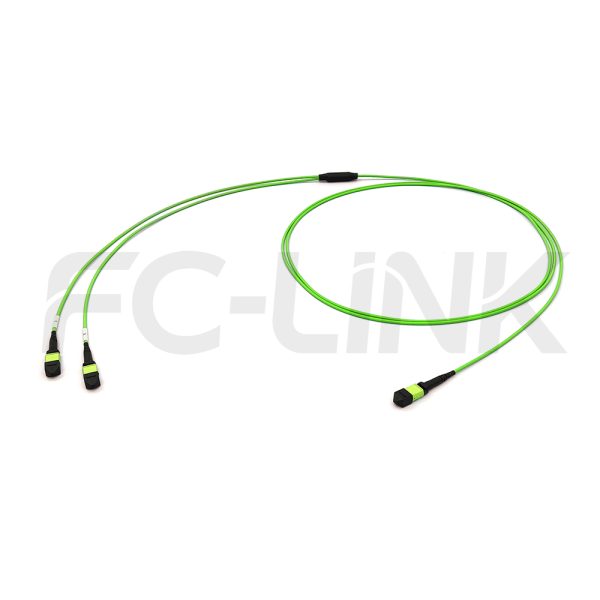

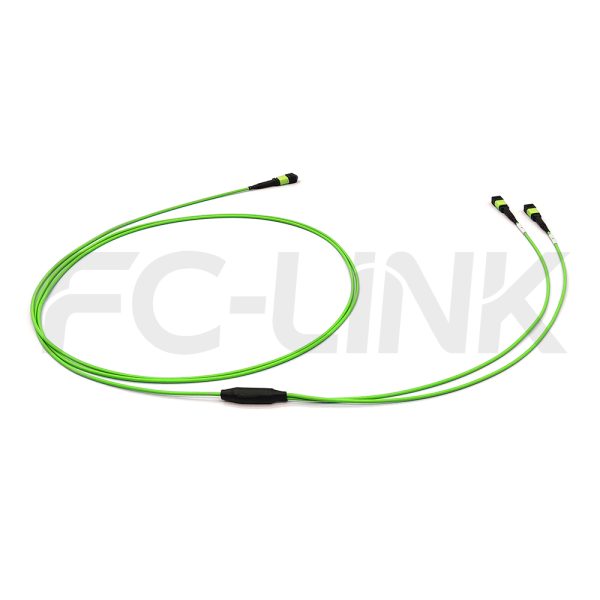

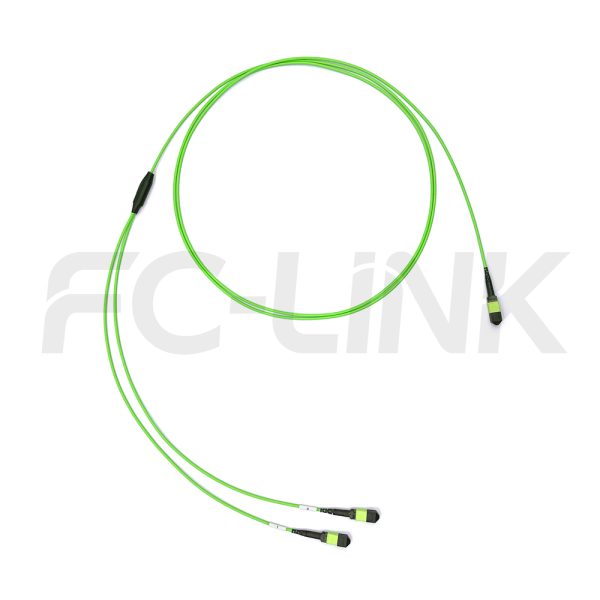

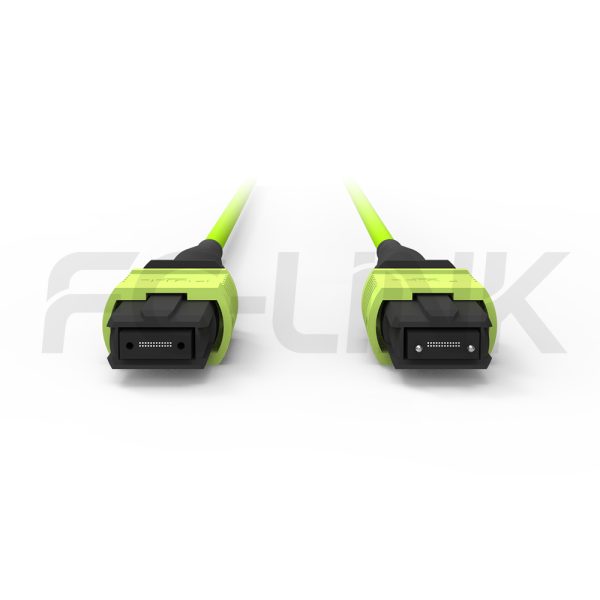

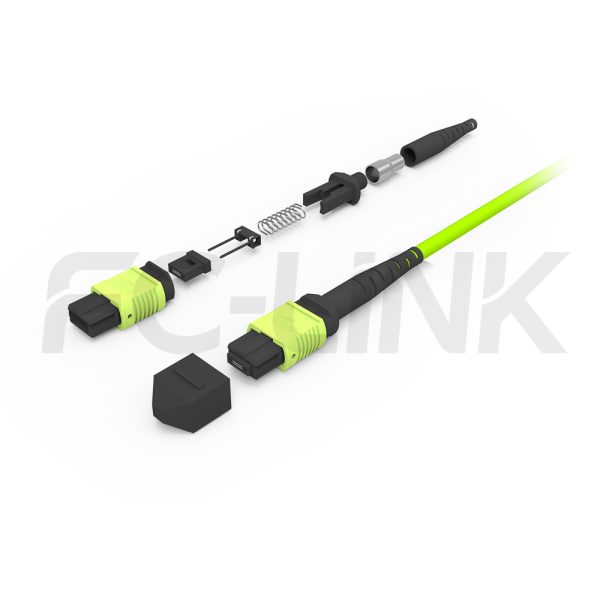

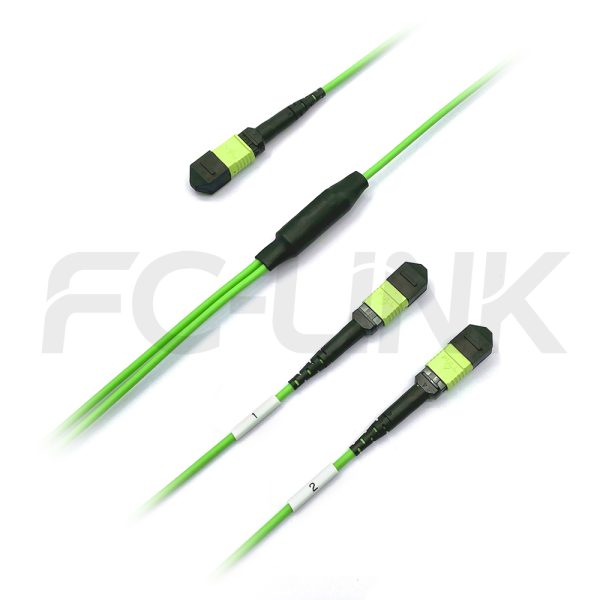

MPO Breakout Cable, MPO-24 PC/APC(Female/Male) to 2 x MPO-12 PC/APC(Female/Male), 24 Fibers, Multimode(OM5),0.35dB Max, Lime Green
Applicable to multiple applications based on MPO 4-channel or 6-channel dual-fiber bidirectional transmission
Applicable to multiple applications based on MPO 12-channel single-fiber bidirectional transmission
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
| SPECIFICATIONS | |||
|---|---|---|---|
| Connector A | MPO | Connector B | 2*MPO |
| Fiber Type | OM5 | Fiber Number | 24 Fibers |
| MPO IL | Standard loss/Low loss | Polishing | PC or APC |
| Branching Type | 1*2 | Connector Boot Type | Round fiber |
| Connector Type | Female/Male | RL | ≥20dB (MM) |
| IL(Typical) | 0.1/0.2dB | IL(Max. Value) | 0.35/0.6dB |
| Breakout Outside Diameter (OD) | 2.0/3.0mm | Cable Color | Lime green |
| Breakout Length | 0.3-1.5m | Flame Retardant Grade | OFN/OFNR/OFNP |
| Cable Material | LSZH/PVC/TPU | Fiber Loss | 2.4dB@850nm/0.6dB@1300nm |
| Fiber Brand | Corning/YOFC | Min.bending Radius(Long Term) | 20D |
| Working Wavelength | 850/1300(MM) | Durability | ≥500 times |
| Min.bending Radius(Short Term) | 10D | Polarity | Consistent with the main cable |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -40 to 85℃ (-40 to 185℉) |
Product Presentation
This 24-Fiber MPO-24 to 2 x MPO-12 OM5 Multimode Breakout Cable represents the cutting edge in high-density, flexible connectivity, ready to support the widest range of protocols. Its design enables its use across multiple applications, efficiently handling both MPO 4-channel or 6-channel dual-fiber bidirectional transmission and future-proof MPO 12-channel single-fiber bidirectional transmission. By utilizing Wide-Band OM5 fiber, this dual MPO-12 assembly ensures maximal bandwidth and minimal insertion loss, securing your infrastructure for the next generation of parallel optics with Elite Low Loss (IL Max ≤ 0.35dB).
MPO Breakout Cable Series Products
Customization Options
Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
Application
QSFP, CFP optical tranceiver
High density data center
FTTX
Performance Parameter
| Technical Performance | |||||||||
| Ferrule type | Insertion loss | Return loss | |||||||
| Typical | Maximum | ||||||||
| SM standard loss | 0.20dB | ≤0.75dB | ≥ 60dB （APC 8°） | ||||||
| SM low loss | 0.10dB | ≤0.35dB | |||||||
| MM standard loss | 0.20dB | ≤0.6dB | ≥ 20dB | ||||||
| MM low loss | 0.10dB | ≤0.35dB | |||||||
| MT Ferrule Options | |||||||||
| Fiber mode | Performance | Fiber count | |||||||
| Single mode | Standard loss | 12 (1x12) | |||||||
| 24 (2x12) | |||||||||
| Low loss | 12 (1x12) | ||||||||
| Multimode | Standard loss | 12 (1x12) | |||||||
| 16 (1x16) | |||||||||
| 24 (2x12) | |||||||||
| 32 (2x16) | |||||||||
| Low loss | 12 (1x12) | ||||||||
| 24 (2x12) | |||||||||
| Cable Parameter | |||||||||
| Items | Specifications | ||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | |||
| Fiber | Diameter | 250±15μm | |||||||
| Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | ||||||||
| Strength Member | Aramid Yarn | ||||||||
| Outer Jacket | Diameter | 3.0±0.2mm | |||||||
| Material | PVC /LSZH | ||||||||
| Color | Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua | ||||||||

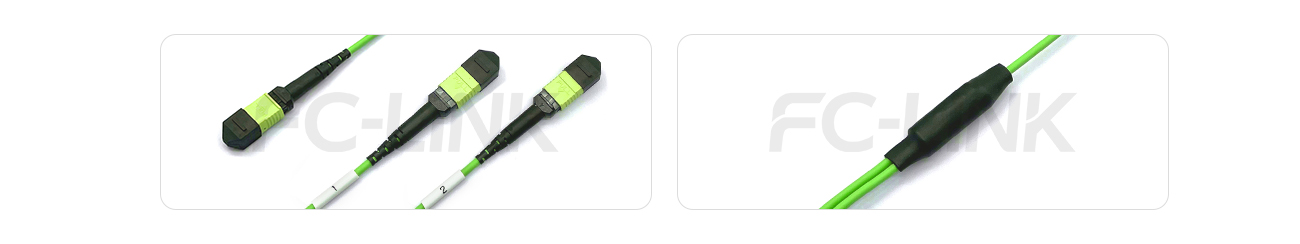

| Detail Display |

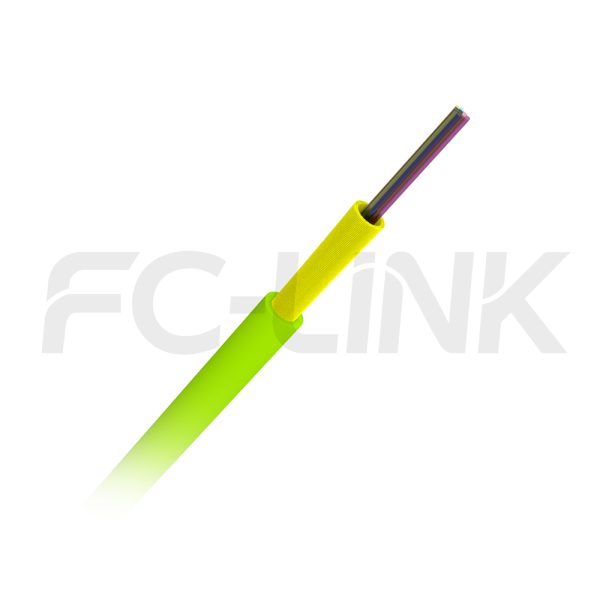

| Fiber Optic Cable Structure |
