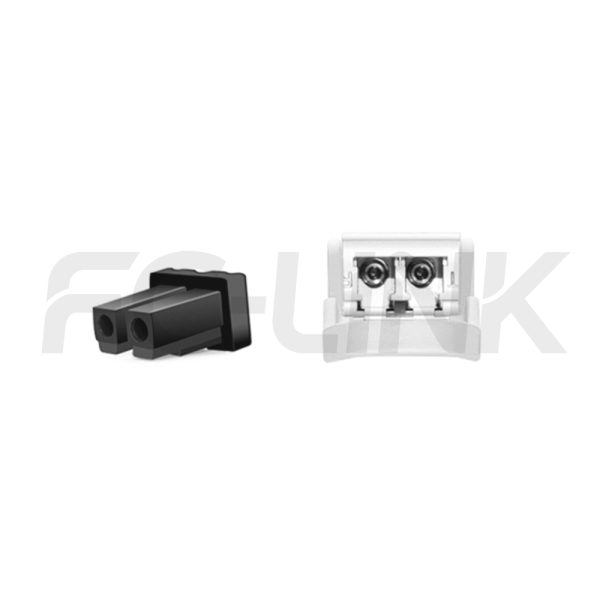

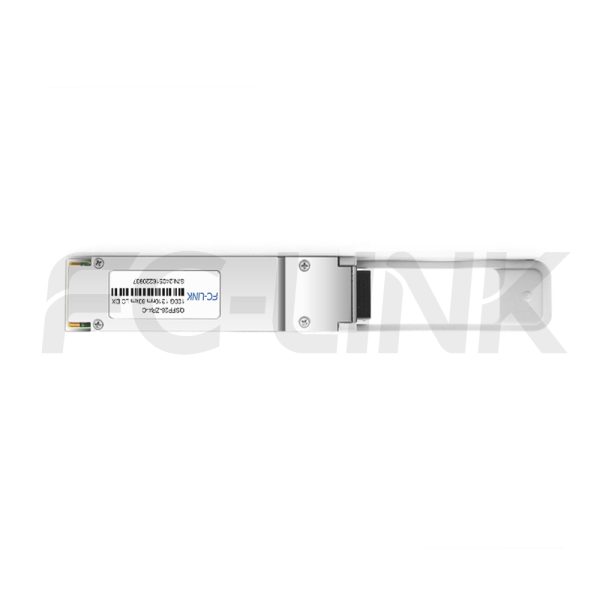

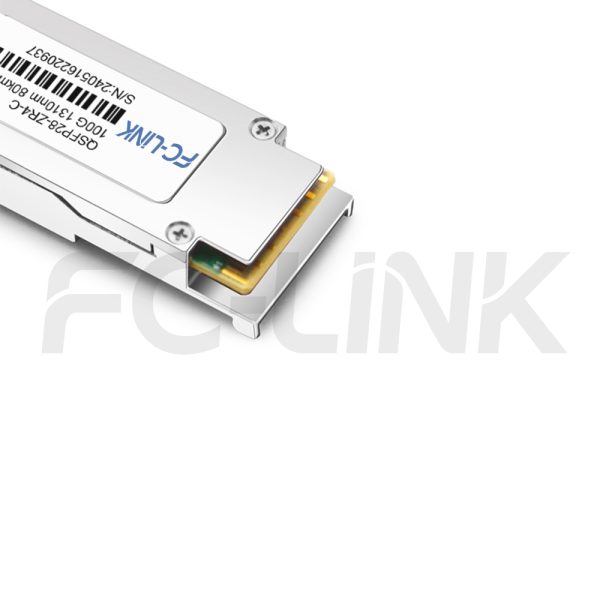

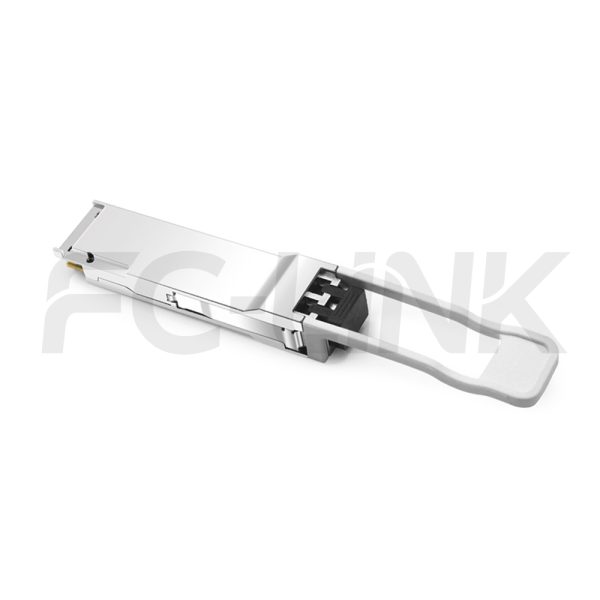

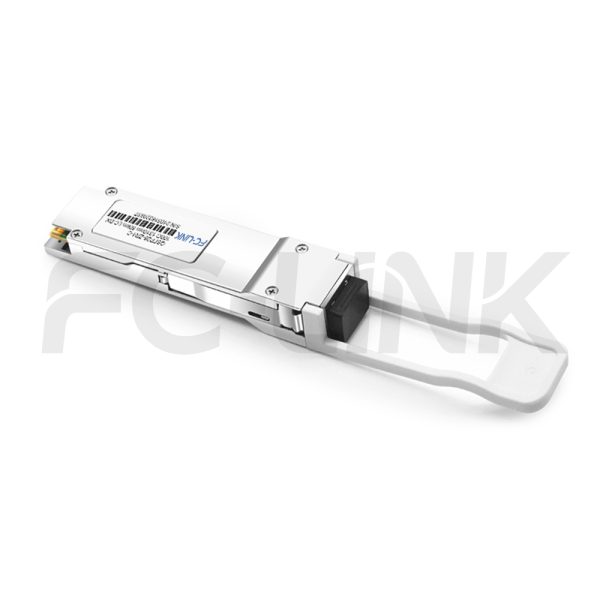

Generic Compatible 100GBASE-ZR4 QSFP28 80km DOM Duplex LC SMF Optical Transceiver Module
QSFP28-103-LW-80(ZR4)-LCD
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
The FC-LINK QSFP28 100G LAN-WDM 80km LC DX Transceiver is a high-performance module designed for 80km optical communication applications. It integrates a 4-lane optical transmitter, a 4-lane optical receiver, and a module management block with a 2-wire serial interface. The optical signals are multiplexed onto a single-mode fiber via an industry-standard LC connector.Built in compliance with the QSFP+ Multi-Source Agreement (MSA), the transceiver features a compact form factor, robust optical/electrical connections, and a digital diagnostic interface. It is engineered to withstand harsh external conditions, including extreme temperatures, high humidity, and EMI interference, ensuring reliable performance in demanding environments.
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | QSFP28-103-LW-80(ZR4)-LCD | Manufacturer brand | FC-LINK |
| Package Type | QSFP28 | Optical connector | LC DX |
| Max Data Rate | 111.81Gbps | Channel Data Rate | 25.78125Gbps |
| Effective transmission distance | 80km | ||
| Wavelength | 1310nm | Operating voltage | 3.3V |
| Fiber Type | SMF | Core Size | 9/125 |
| Transmitter Type | LAN WDM EML | Receiver Type | PlN |
| TX Power | 2.0~6dBm | Receiver Sensitivity | -28dBm |
| Digital Optical Monitoring(DOM) | YES | Receiver Overload | 4.5dBm |
| Power Consumption | <6.5W | Protocols | 100GBASE-ZR4 Ethernet Links |
| Operating temperature(Commercial) | 0℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |

Server-to-Switch Data Center Links
Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.

Building-to-Building Campus Backbone
Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.

Access-to-Core Enterprise Uplinks
Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.

Industrial Switching in Harsh Environments
Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
| Storage temperature | TC | -40 | 85 | ℃ | |||||
| Relative humidity | RH | 5 | 85 | % | |||||
| These values represent the damage threshold of the module.Stress in excessof any of the individual absolute maximum ratings can cause immediate catastrophic damage tothe module even if all other parameters are within recommended operating conditions. | |||||||||
| Recommended Operating Environment | |||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Power supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||||
| Operating case temperature | Tca | 0 | - | 70 | ℃ | ||||
| Link distance | D | - | - | 80 | km | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Ref | |||
| Transmitter | |||||||||
| Input differential impedance | Rin | 90 | 100 | 110 | Ω | 1 | |||
| Differential input voltage amplitude | Vin | - | - | 900 | mVp-p | 2 | |||
| Receiver | |||||||||
| Output differential impedance | Rout | 90 | 100 | 110 | Ω | 1 | |||
| Differential output voltage amplitude | Vout | 300 | - | 900 | mVp-p | 3 | |||
| Notes: [1]AC coupled. [2]Differential input voltage amplitude is measured between TxnP and TxnN. [3]Differentialoutput voltage amplitude is measured between RxnP and RxnN. | |||||||||
| Transmitter Specifications-Optical | |||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Center wavelength | Ch0 | λ0 | 1294.53 | 1295.56 | 1296.59 | nm | |||
| Ch1 | λ1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||
| Ch2 | λ2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||
| Ch3 | λ3 | 1308.09 | 1309.14 | 1310.09 | nm | ||||
| Bit Rate per channel | B | 25.78125±100ppm | Gbps | ||||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Average launch power,each lane | - | 2 | - | 6 | dBm | ||||
| Launch power in OMA minus TDP,each lane | OMA-TDP | -0.65 | - | - | dBm | ||||
| Transmission & dispersion penalty, each lane | TDP | - | - | 2.5 | dB | ||||
| Relative intensity noise | RIN | - | - | -130 | dB/Hz | ||||
| Transmitter reflectance | - | - | - | -20 | dB | ||||
| Extinction ratio | ER | 6 | - | - | dB | ||||
| Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3} | {0.25,0.4,0.45,0.25,0.28,0.4} | ||||||||
| Average launch power of OFF transmitter,each lane | - | - | - | -30 | dBm | ||||
| Optical return loss tolerance | - | - | - | 20 | dB | ||||
| Receiver Specifications-Optical | |||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Center wavelength | Ch0 | λ0 | 1294.53 | 1295.56 | 1296.59 | nm | |||
| Ch1 | λ1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||
| Ch2 | λ2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||
| Ch3 | λ3 | 1308.09 | 1309.14 | 1310.09 | nm | ||||
| Bit rateper channel | B | 25.78125±100ppm | Gbps | ||||||
| Damage threshold,each lane | - | 6.5 | - | - | dBm | ||||
| Average receive power,each lane | - | -28 | - | -7 | dbm | ||||
| Unstressed sensitivity (OMA) at 5×10-5 BER | OMAin | - | - | -28 | dBm | ||||
| LOS assert | LOSA | -40 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -29 | dBm | ||||

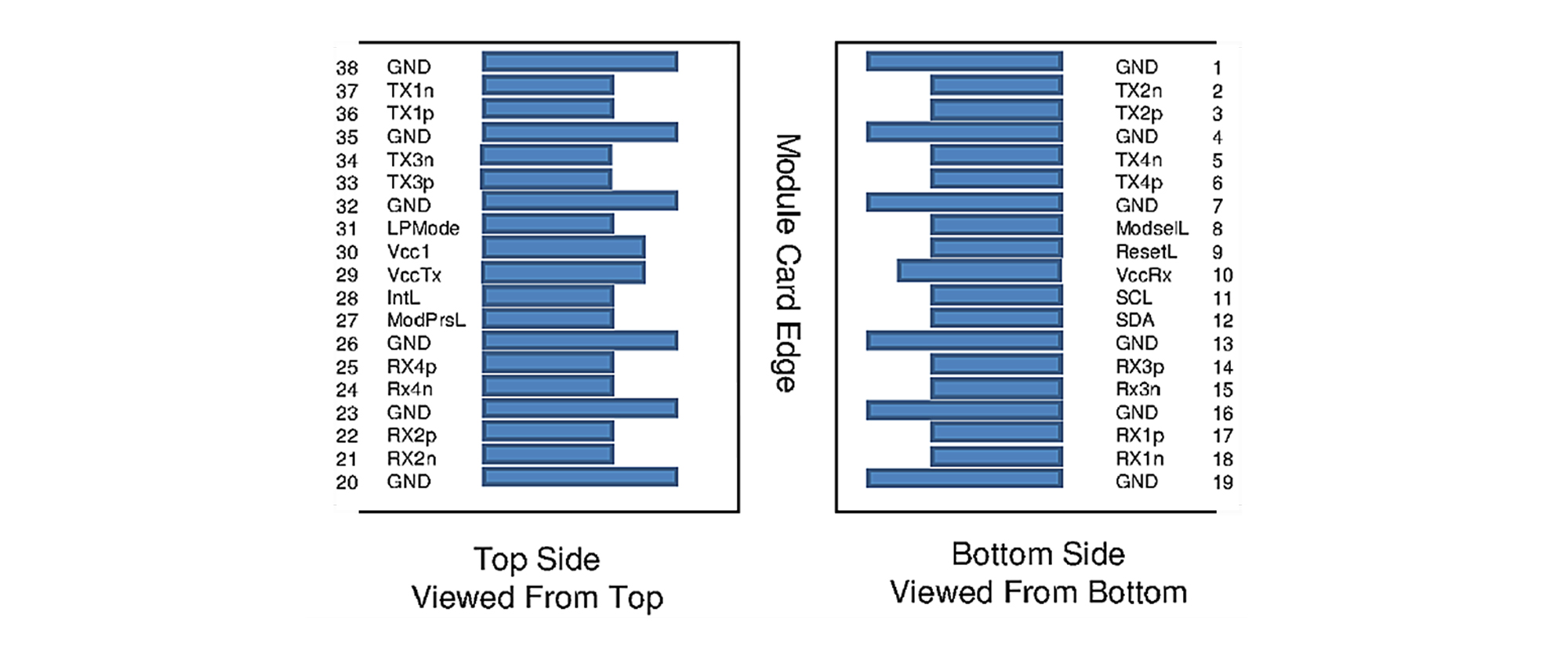

| Pin Descriptions |
| Pin Definition | |||||||||
| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | Tx2n | Transmitter inverted data input | |||||||
| 3 | Tx2p | Transmitter non-inverted data input | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4n | Transmitter inverted data input | |||||||
| 6 | Tx4p | Transmitter non-inverted data input | |||||||
| 7 | GND | Ground | |||||||
| 8 | ModSelL | Module select | |||||||
| 9 | ResetL | Module reset | |||||||
| 10 | VCC rx | +3.3V power supply receiver | |||||||
| 11 | SCL | 2-wire serial interface clock | |||||||
| 12 | SDA | 2-wire serial interface data | |||||||
| 13 | GND | Ground | |||||||
| 14 | Rx3p | Receiver non-inverted data output | |||||||
| 15 | Rx3n | Receiver inverted data output | |||||||
| 16 | GND | Ground | |||||||
| 17 | Rxlp | Receiver non-inverted data output | |||||||
| 18 | Rx1n | Receiver inverted data output | |||||||
| 19 | GND | Ground | |||||||
| 20 | GND | Ground | |||||||
| 21 | Rx2n | Receiver inverted data output | |||||||
| 22 | Rx2p | Receiver non-inverted data output | |||||||
| 23 | GND | Ground | |||||||
| 24 | Rx4n | Receiver inverted data output | |||||||
| 25 | Rx4p | Receiver non-inverted data output | |||||||
| 26 | GND | Ground | |||||||
| 27 | ModPrsL | Module present | |||||||
| 28 | IntL | Interrupt | |||||||
| 29 | VCCTx | +3.3V power supply transmitter | |||||||
| 30 | VCC1 | +3.3V power supply | |||||||
| 31 | LPMode | Low power mode | |||||||
| 32 | GND | Ground | |||||||
| 33 | Tx3p | Transmitter non-inverted data input | |||||||
| 34 | Tx3n | Transmitter inverted data input | |||||||
| 35 | GND | Ground | |||||||
| 36 | Txlp | Transmitter non-inverted data input | |||||||
| 37 | Tx1n | Transmitter inverted data input | |||||||
| 38 | GND | Ground | |||||||
