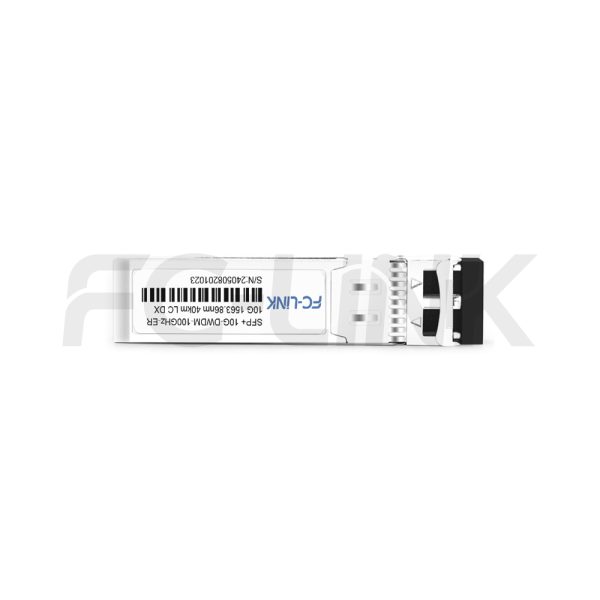

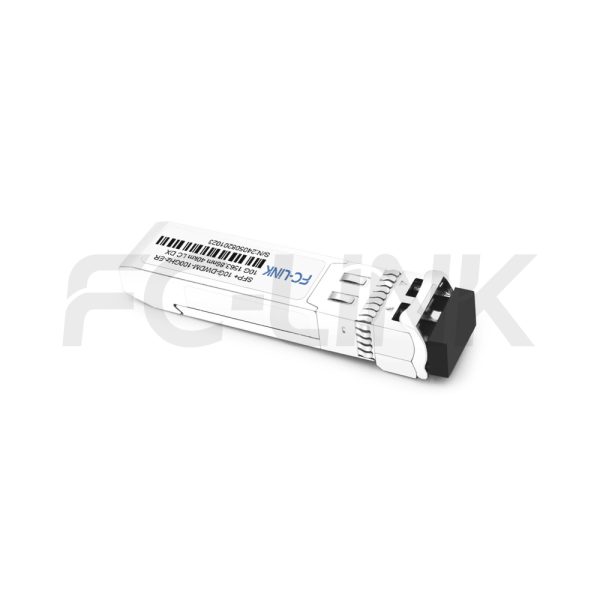

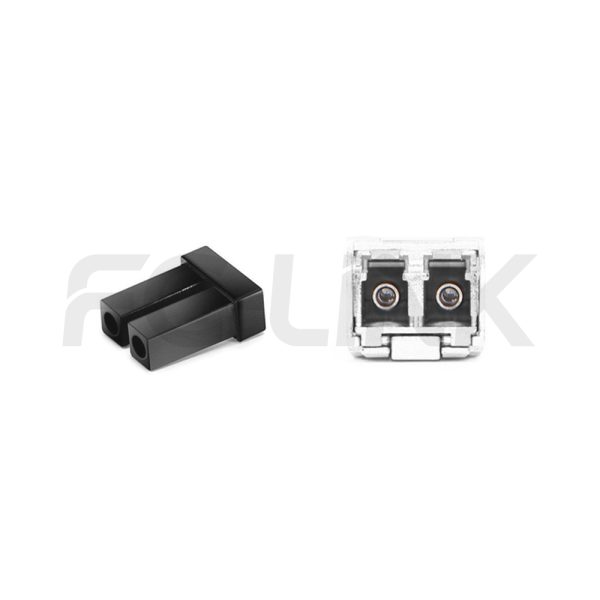

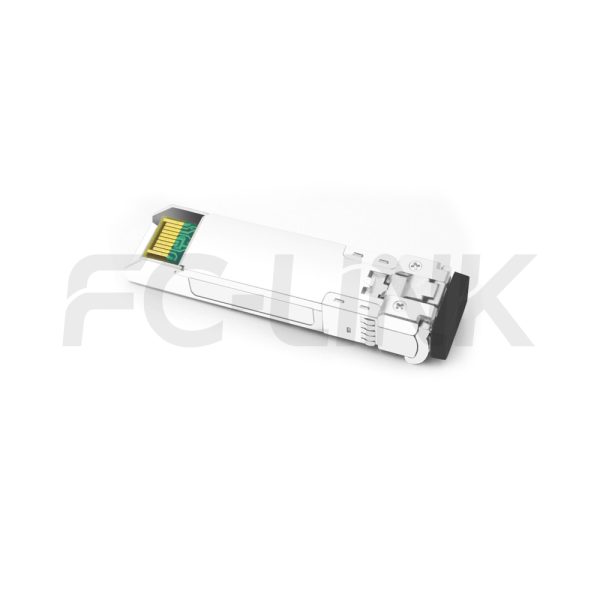

10G DWDM 100GHz SFP+ ER Transceiver for 40km SMF Links, Duplex LC
SFP+10-100DW-40(ER)-LCD
- Broad Multi-Brand Compatibility
- Flexible Customization Support
- Tested for Reliable Performance
- Fast Response & Delivery
- Professional Technical Support
The FC-LINK SFP+ 10G 100GHz DWDM 40km ER LC DX series single-mode transceiver is a compact pluggable module designed for duplex optical data communications. Ideal for deployment in DWDM networking equipment within metropolitan access and core networks, this module operates at nominal DWDM wavelengths from 1528nm to 1566nm, in accordance with ITU-T specifications. It is fully compliant with SFF-8431 and SFF-8432 MSA standards.
| SPECIFICATIONS | |||
|---|---|---|---|
| Product Model | SFP+10-100DW-40(ER)-LCD | Manufacturer Brand | FC-LINK |
| Package Type | SFP+ | Optical Connector | Duplex LC |
| Max Data Rate | 11.3Gbps | Channel Data Rate | 10.5Gbps |
| Effective Transmission Distance | 40km | ||
| Wavelength | 1528.77nmto1563.86nm | Operating Voltage | 3.3V |
| Fiber Type | SMF | Core Size | 9/125µm |
| Transmitter Type | DWDM EML | Receiver Type | IDP |
| TX Power | -1~4dBm | Receiver Sensitivity | -16dBm |
| Digital Diagnostic Monitoring(DDM) | YES | Receiver Overload | 0dBm |
| Power Consumption | C<1.5W,I<1.8W | Protocols | SFF-8431 MSA SFF-8432 MSA SFF 8472 |
| Operating Temperature(Commercial) | 0℃~+70℃ | Storage Temperature(Commercial) | -40℃~+85℃ |
| Operating Temperature(Industrial) | -40℃~+85℃ | Storage Temperature(Industrial) | -40℃~+85℃ |
Server-to-Switch Data Center Links
Used for 10G/25G/100G optical uplinks between servers and top-of-rack switches in high-density data center deployments.
Building-to-Building Campus Backbone
Suitable for 1G/10G fiber links between office buildings, campus distribution rooms, and backbone aggregation points.
Access-to-Core Enterprise Uplinks
Designed for switch uplinks from access to aggregation or core layers in enterprise and campus network architectures.
Industrial Switching in Harsh Environments
Applied in industrial Ethernet, automation systems, and outdoor cabinets where wider temperature tolerance and stable fiber communication are required.
1
1
1
Compatible Brands
Customization Options
Vendor Coding
Private Label
Custom Part Number
Packaging Design
Temperature Grade Selection
| General Specifications | |||||||||
| Parameter | Symbol | Min | Typ. | Max | Unit | Ref. | |||
| Module form factor | BR | 9.95 | - | 10.5 | Gb/s | 1 | |||
| Number of lanes | BER | - | - | 10-12 | - | 2 | |||
| Maximum aggregate data rate | Lmax | - | 40 | - | km | - | |||
| *Notes: 1. 10GBASE-ER, 10GBASE-EW, 1200-SM-LL-L 10GFC. 2. Tested with a PRBS 231-1 test pattern. |
|||||||||
| Absolute Maximum Ratings | |||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Storage temperature | Ts | -40 | - | 85 | °C | ||||
| Supply voltage | Vcc | -0.5 | - | 4 | V | ||||
| Operating relative humidity | - | - | - | 85 | % | ||||
| Recommended Operating Conditions | |||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Case operating temperature | TC | -5 | - | +70 | °C | ||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Supply current | Icc | - | - | 430 | mA | ||||
| Data rate | - | 0.614 | - | 11.3 | Gbps | ||||
| Electrical Characteristics | |||||||||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | - | |||
| Power supply current | Icc (0℃ to 70℃) | - | 350 | 455 | mA | - | |||
| Icc (-40℃ to 85℃) | - | 350 | 545 | mA | - | ||||
| Date rate | DR | 0.6 | - | 11.3 | Gbps | Date rate | |||
| Transmitter | |||||||||
| TX_dis | Disable | - | 2 | - | Vcc+0.3 | V | - | ||
| Enable | - | 0 | - | 0.8 | - | ||||
| TX_FAULT | Fault | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.5 | - | ||||
| CML inputs (Differential) | Vin | 250 | 1000 | mVpp | AC coupled input | ||||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohm @ DC | |||
| Receiver | |||||||||
| CML Outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| RX_LOS | Loss | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.8 | - | ||||
| Output impedance (Differential) | Zout | 85 | 100 | 115 | ohm | - | |||
| MOD_DEF ( 0:2 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Optical Characteristics | |||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Data rate | - | 0.6 | - | 11.3 | Gbps | ||||
| Transmitter | |||||||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Center wavelength spacing | - | - | 100 | - | GHz | ||||
| - | 0.8 | - | nm | ||||||
| Average output power | Pout | -1 | - | 4 | dBm | ||||
| Average launch power (Tx: OFF) | POFF | - | - | -30 | dBm | ||||
| Extinction ratio | ER | 6 | - | - | dB | ||||
| Transmitter dispersion penalty @800ps/nm | TDP | - | - | 3.0 | dB | ||||
| Pout@TX disable asserted | Pout | - | - | -45 | dBm | ||||
| Relative intensity noise | RIN | - | - | -128 | dB/Hz | ||||
| TX jitter | TXj | Per 802.3ae requirements | |||||||
| Receiver | |||||||||
| Receiver sensitivity | Pmin | - | - | -16 | dBm | ||||
| Receiver overload | Pmax | 0 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -17 | dBm | ||||
| LOS assert | LOSA | -30 | - | - | dBm | ||||
| LOS hysteresis | - | 0.5 | - | - | dB | ||||
| *Notes: 1. Output is coupled into a 9/125μm single-mode fiber. 2. Minimum average optical power measured at the BER less than 1E-12. The measurepattern is PRBS 231-1. 3. CML logic, internally AC coupled. |
|||||||||
| Wavelength Table | |||||||||
| Channel | Frequency (THz) | Center wavelength(nm) | Channel | Frequency (THz) | Center wavelength(nm) | ||||
| 17 | 191.7 | 1563.86 | 40 | 194 | 1545.32 | ||||
| 18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 | ||||
| 19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 | ||||
| 20 | 192 | 1561.41 | 43 | 194.3 | 1542.94 | ||||
| 21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 | ||||
| 22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 | ||||
| 23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 | ||||
| 24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 | ||||
| 25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 | ||||
| 26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 | ||||
| 27 | 192.7 | 1555.75 | 50 | 195 | 1537.4 | ||||
| 28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 | ||||
| 29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 | ||||
| 30 | 193 | 1553.33 | 53 | 195.3 | 1535.04 | ||||
| 31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 | ||||
| 32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 | ||||
| 33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 | ||||
| 34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.9 | ||||
| 35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 | ||||
| 36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 | ||||
| 37 | 193.7 | 1547.72 | 60 | 196 | 1529.55 | ||||
| 38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 | ||||
| 39 | 193.9 | 1546.12 | - | - | - | ||||

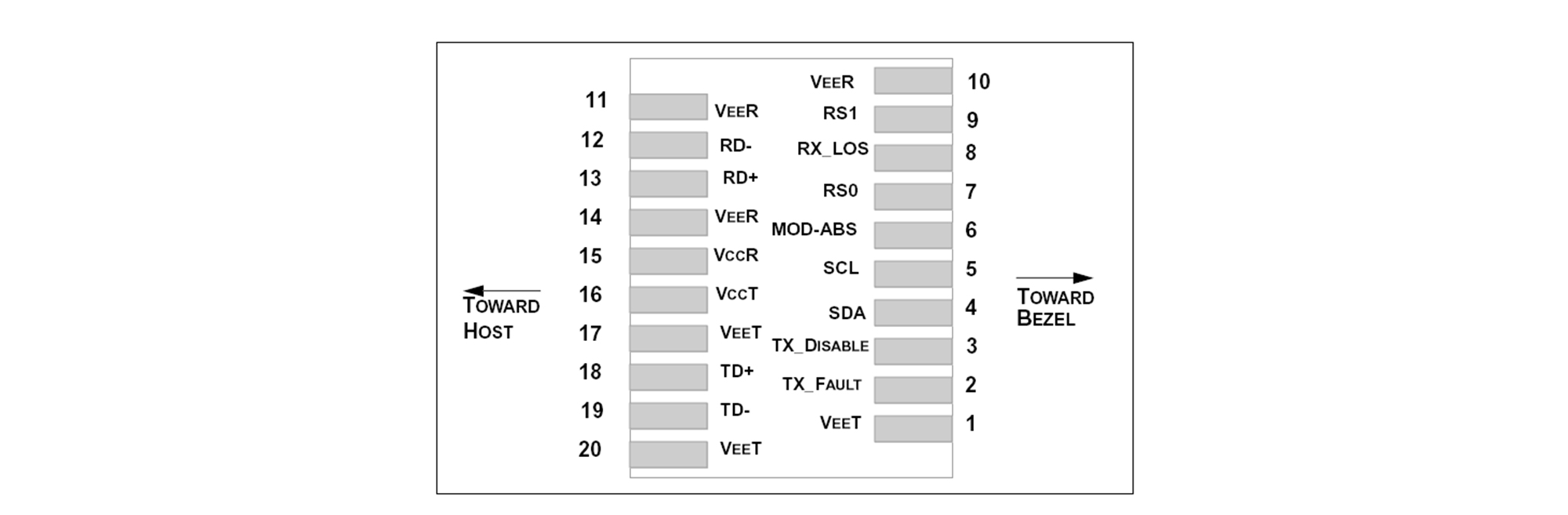

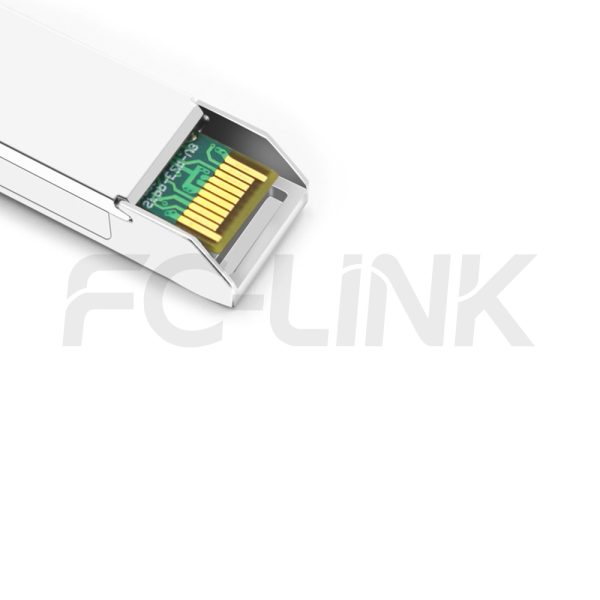

| PIN DESCRIPTION |
| Pin | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 2 | TX Fault | Transmitter fault indication | 3 | Note 1 | |||||
| 3 | TX Disable | Transmitter disable | 3 | Note 2, module disables on high or open | |||||
| 4 | SDA | Module definition 2 | 3 | Note 3, data line for serial ID. | |||||
| 5 | SCL | Module definition 1 | 3 | Note 3, clock line for serial ID. | |||||
| 6 | MOD-ABS | Module definition 0 | 3 | Note 3 | |||||
| 7 | RS0 | RX rate select(LVTTL). | 3 | Rate select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a>30K resistor. | |||||
| 8 | LOS | Loss of signal | 3 | Note 4 | |||||
| 9 | RS1 | TX rate select(LVTTL). | 1 | Rate select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor. | |||||
| 10 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 11 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 12 | RD- | Inv. received data out | 3 | Note 6 | |||||
| 13 | RD+ | Received data out | 3 | Note 7 | |||||
| 14 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | |||||
| 16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | |||||
| 17 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 18 | TD+ | Transmit data in | 3 | Note 8 | |||||
| 19 | TD- | Inv. transmit data in | 3 | Note 8 | |||||
| 20 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| Notes: 1) . TX Fault is an open collector/drain output, which should be pulled up with a 4.7K - 10K resistor on the host board. Pull up voltage between 2.0V and VccT, R+0.3V. When high,output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V. 2) . TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7-10 K resistor. Its states are: Low (0 - 0.8V): Transmitter on (>0.8, < 2.0V): Undefined High (2.0 - 3.465V):Transmitter Disabled Open: Transmitter Disabled 3)Module absent, connected to VEET or VEER in the module. 4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10K resistor. Pull up voltage between 2.0V and VccT, R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V. 5) VeeR and VeeT may be internally connected within the SFP+ module. 6) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be terminated with100(differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. 7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internall connected within the SFP+ transceiver module. 8) . TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. |
|||||||||
